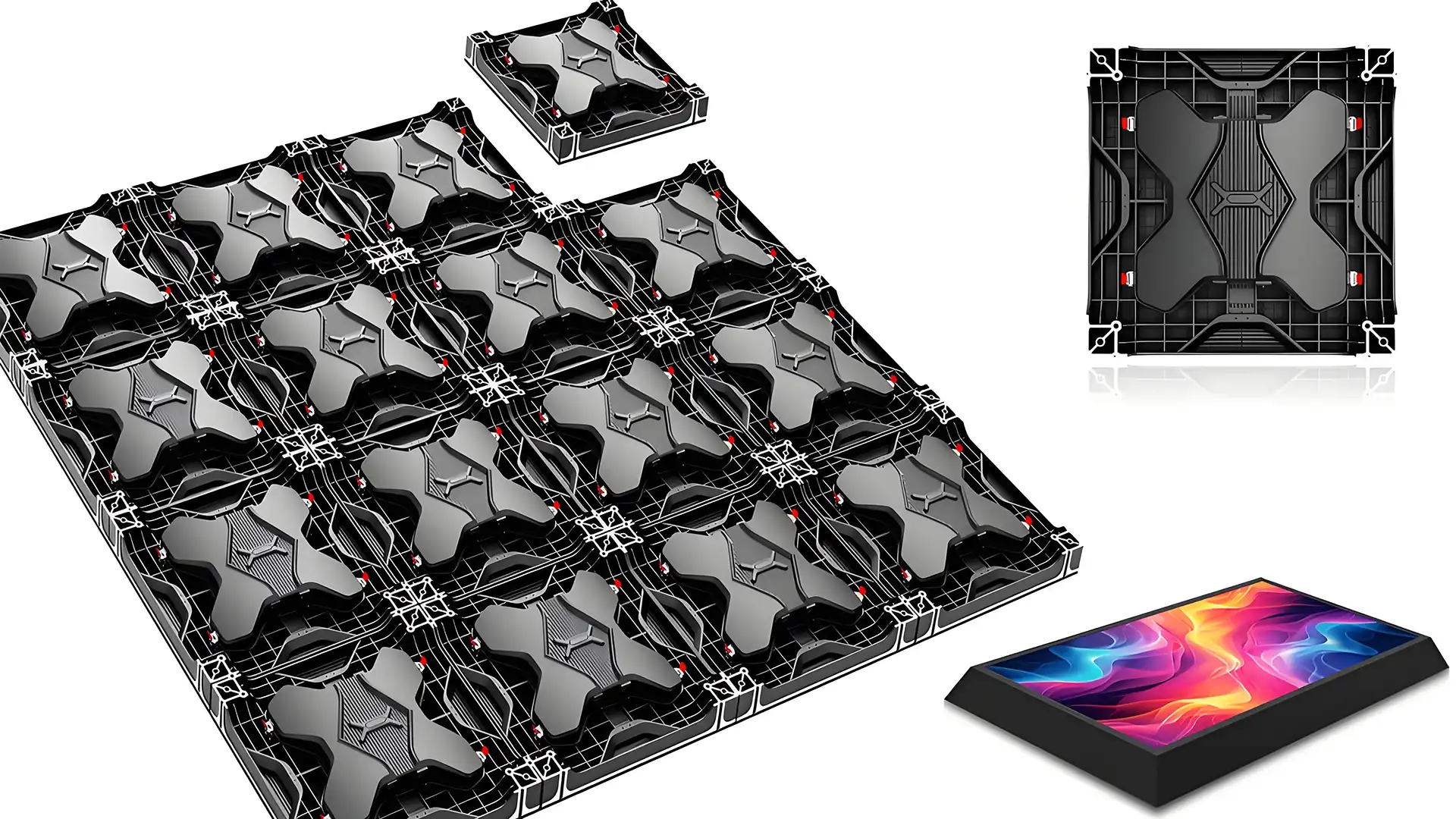

Excellent cabinet design with high-protection die-casting, IP65-rated dustproof and waterproof performance, and an openable back cover for easy maintenance of power supply and receiver card. Lightweight and easy to install, remove, and transport in a flight case:

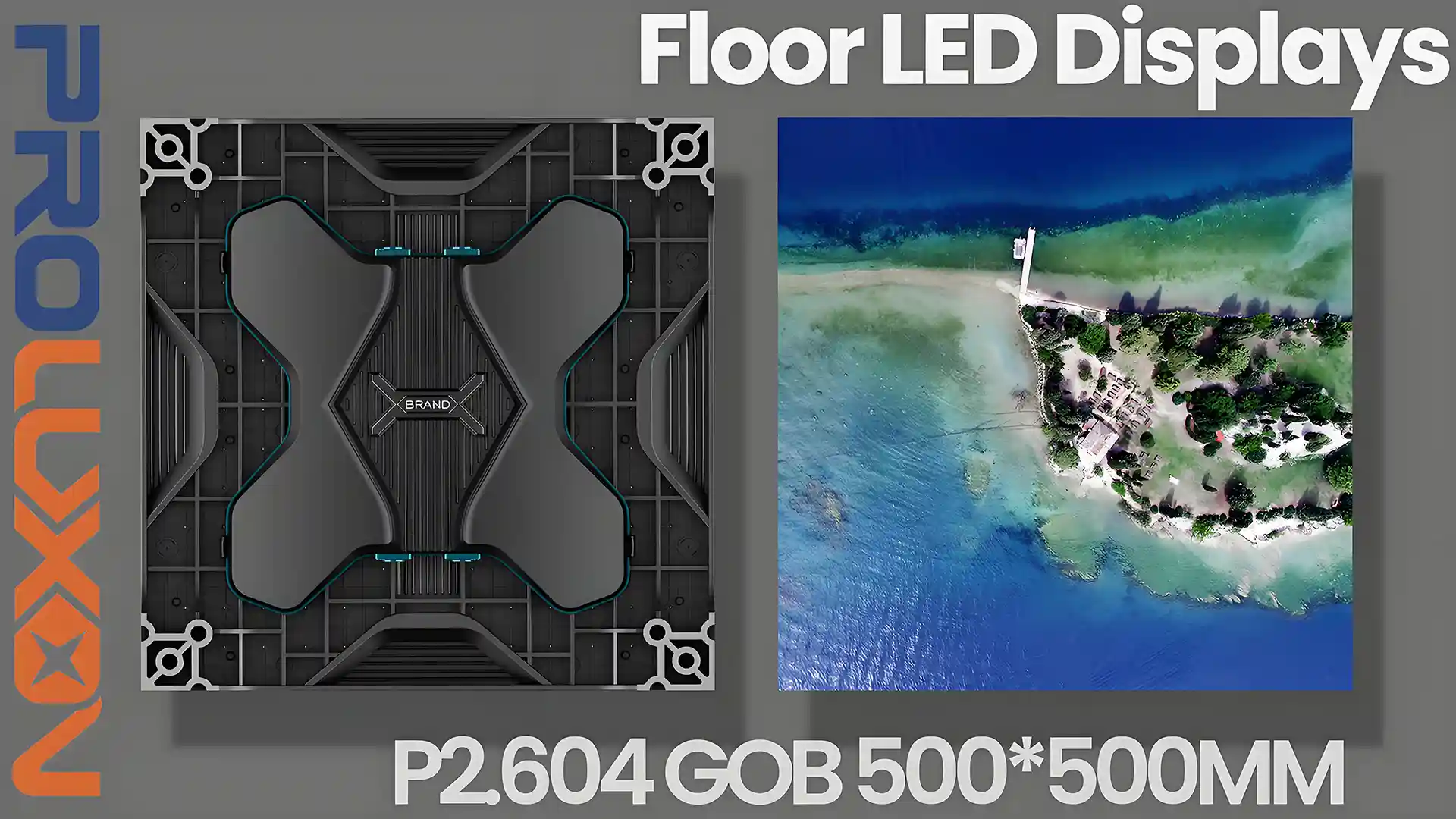

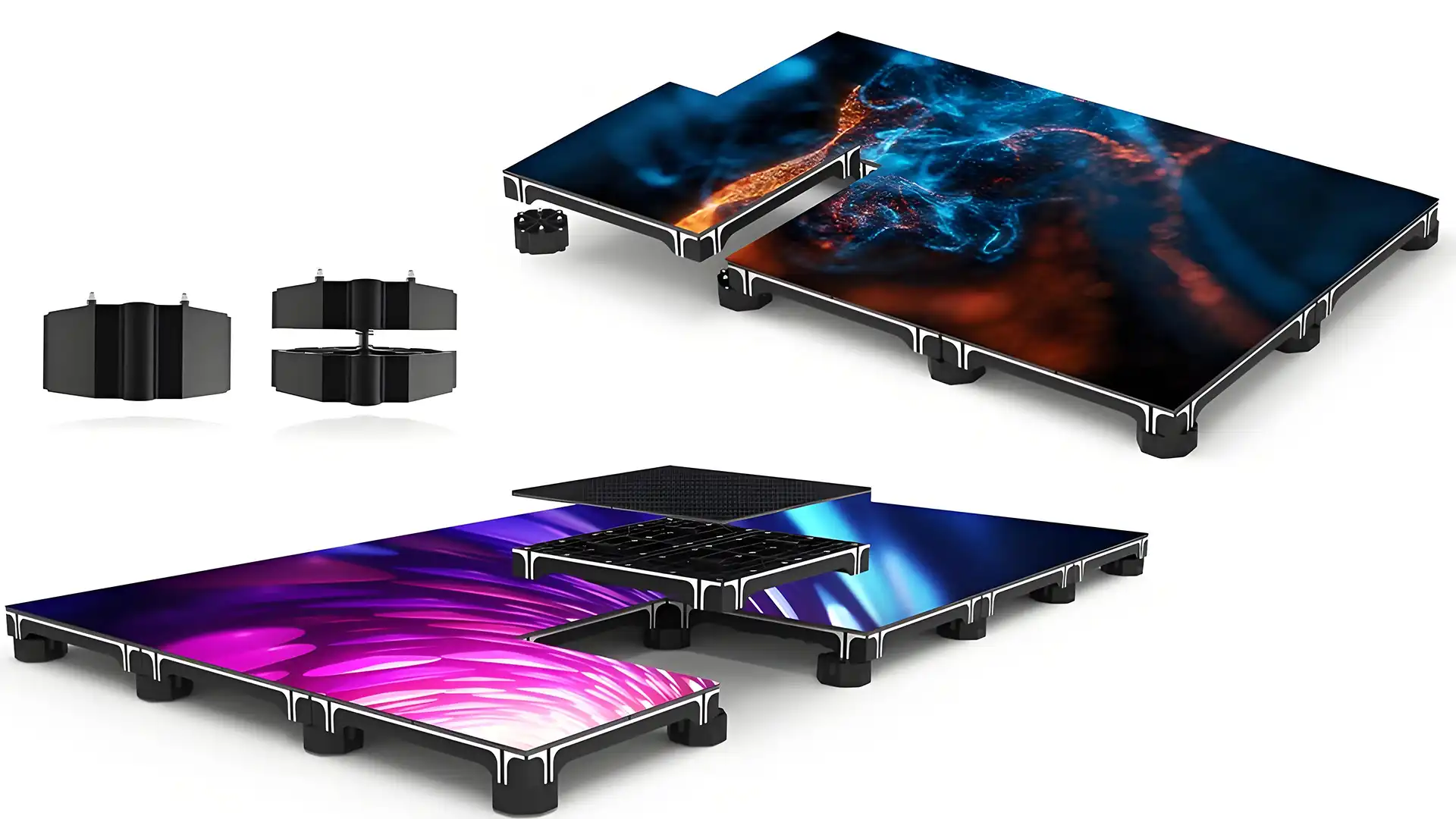

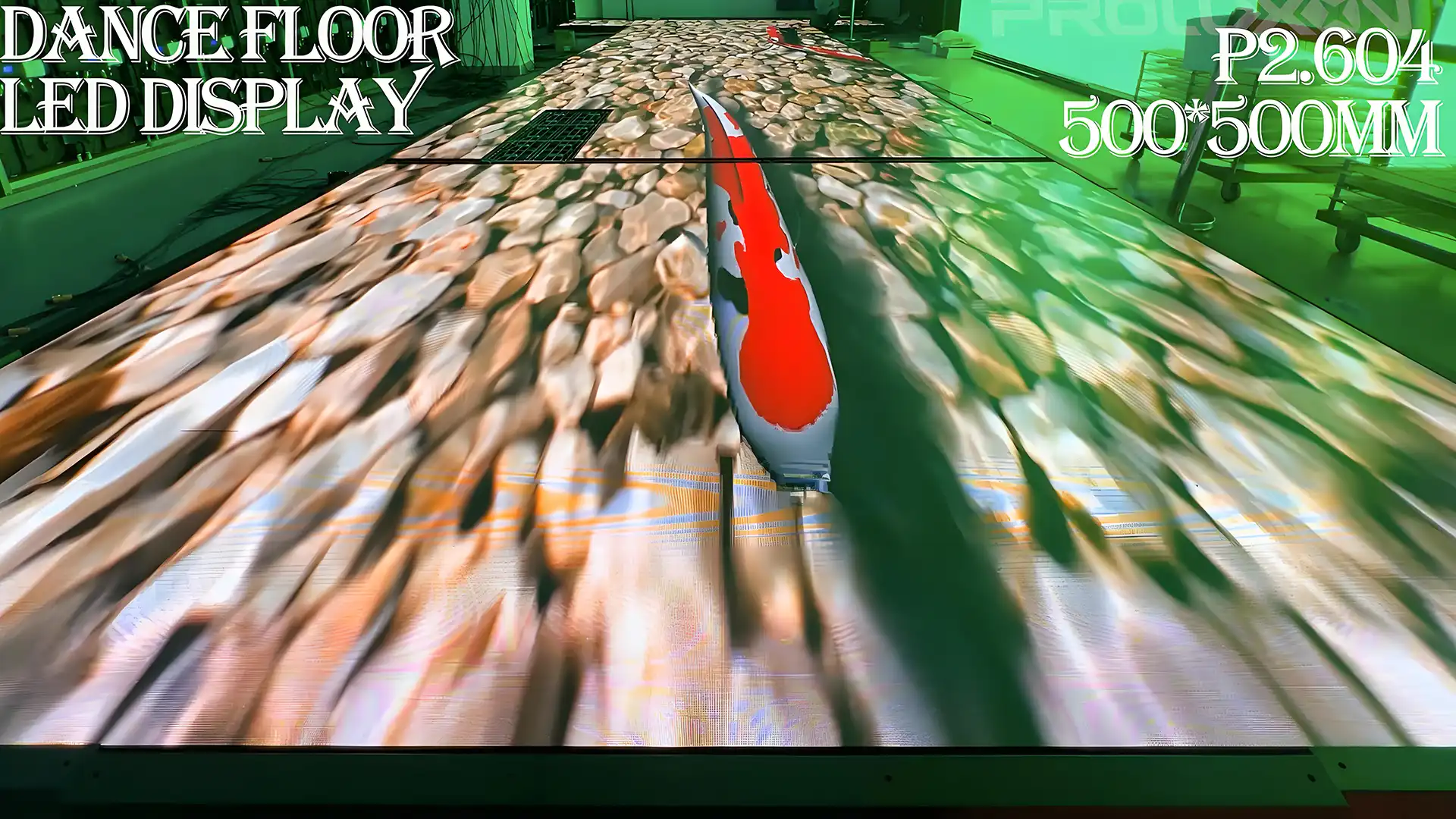

01. Flexible and Fast Installation: Our LED dance floor screen features a lightweight design at just 10.8 kg per unit. The slim die-casting cabinet measures 500×500 mm with only 92 mm thickness. Seamless splicing ensures a perfect, uninterrupted image. Our unique LED floor tiles support multiple installation methods—ground, embedded, steel frame, or rail—allowing flexible setup based on the environment;

02. Front Services: The module features a magnetic front-maintenance design, enabling quick and easy maintenance of the module, power supply, and receiving card without professional tools or technicians, ensuring fast replacement and hassle-free operation. It adopts GOB technology for enhanced durability, offering anti-collision, moisture-proof, wear-resistant, and easy-to-clean performance;

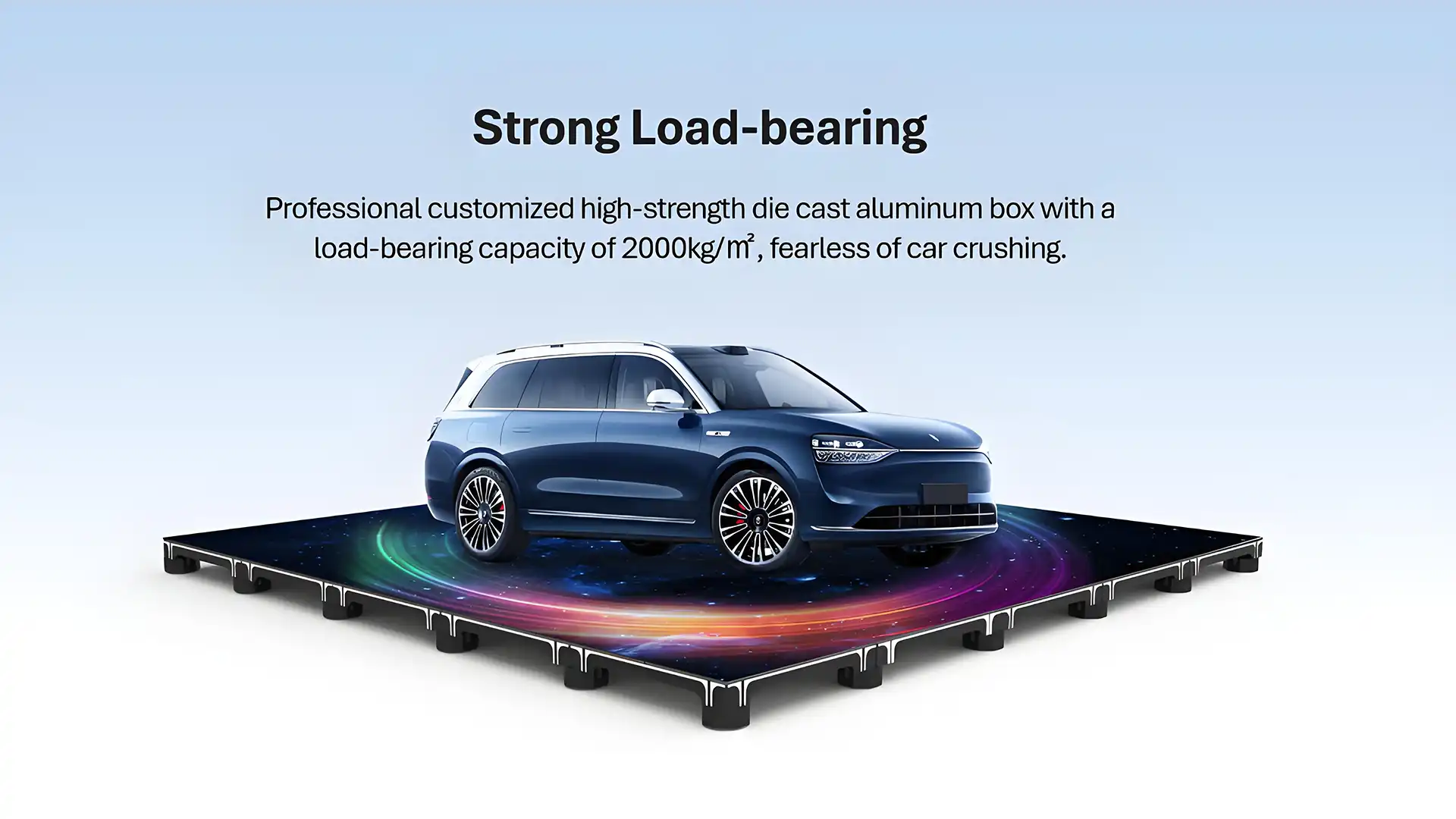

03. High Load-Bearing Performance: LED floor tile screen features super GOB technology and a load capacity of 2,000 kg/m², ensuring IP65 protection for both indoor and outdoor use. Its high load-bearing performance supports heavy traffic, including SUVs, while maintaining reliable display operation;

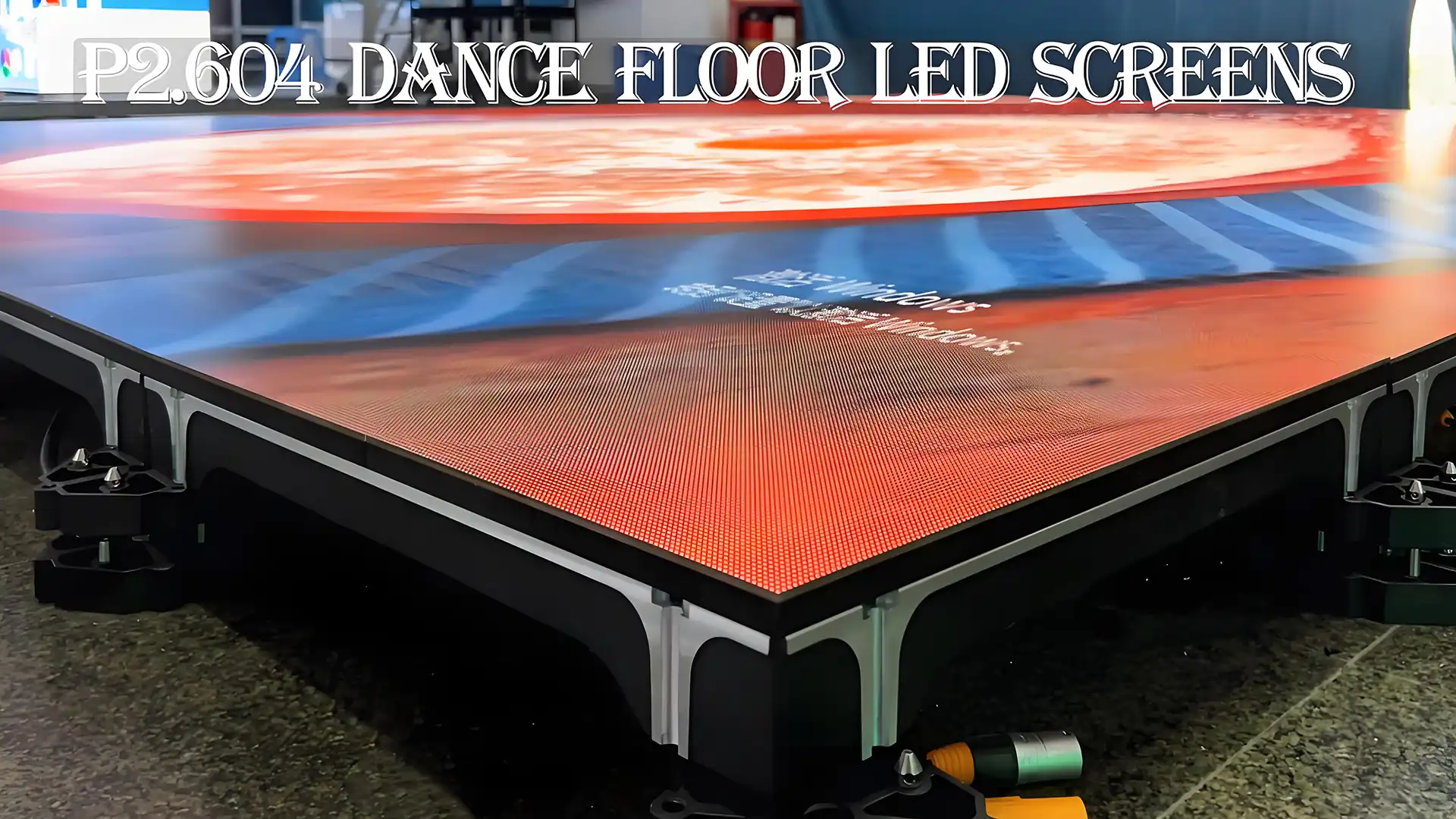

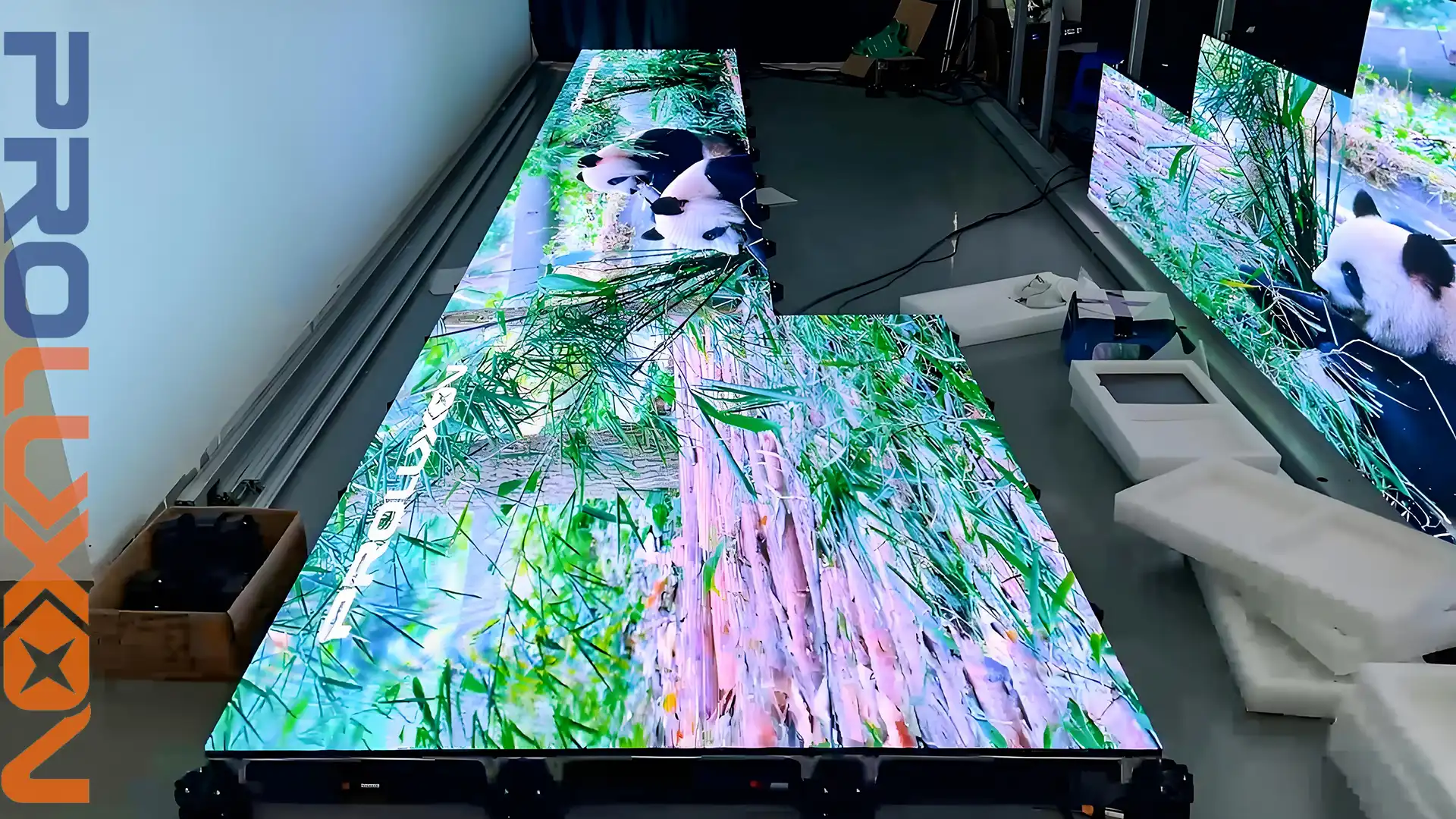

01. New design floor LED screens with P1.95, P2.5, P2.604, P2.976 and P3.91 types of SMD1515, SMD2020 introduced to the market in 2024. It offers options of PC panel and GOB panel to cater to different usage scenarios;

02. The floor LED display offers exceptional display quality, impressive load-bearing capacity, unparalleled protection capabilities, intelligent interactivity, effortless installation and maintenance, as well as customizable content;

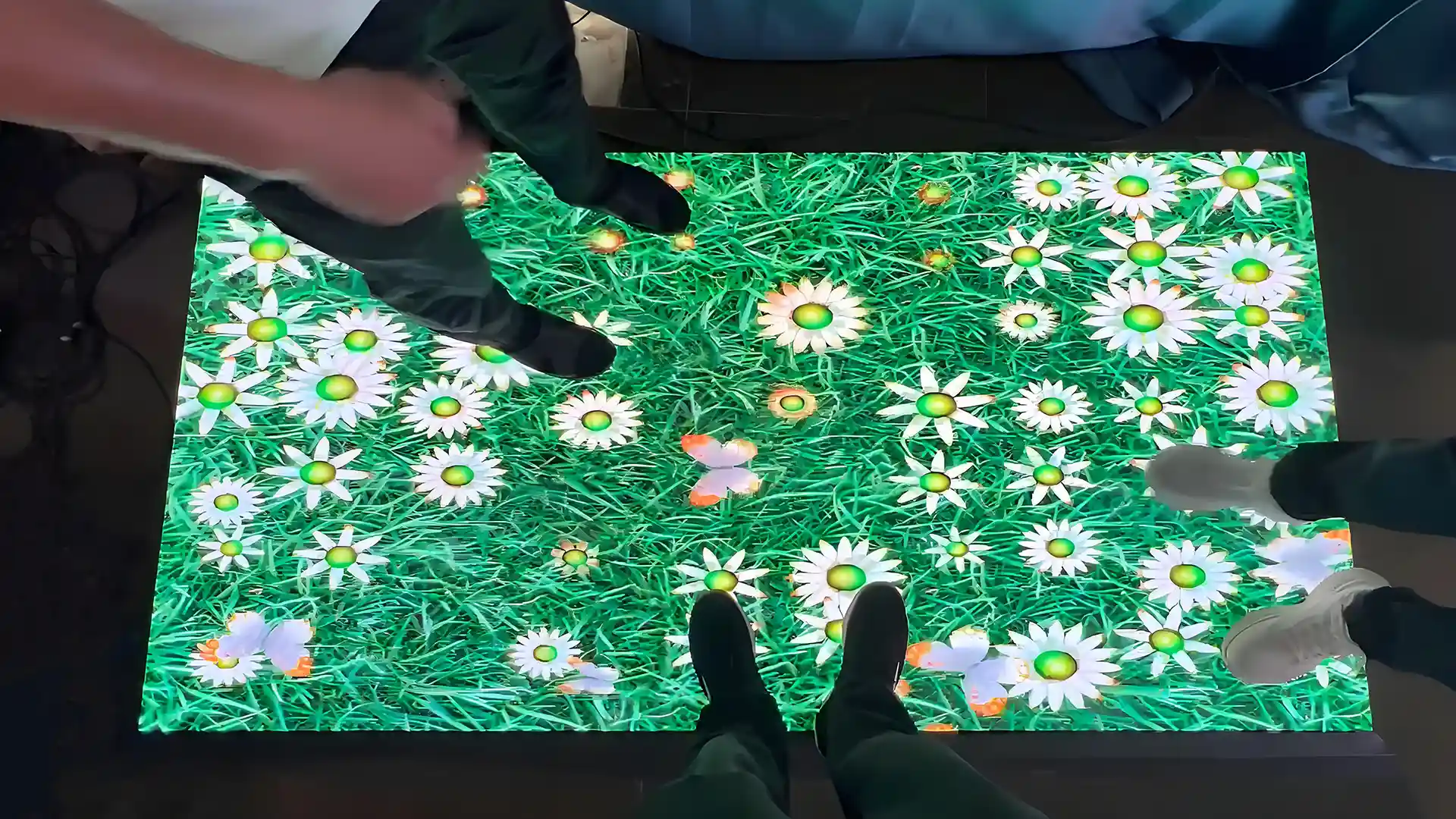

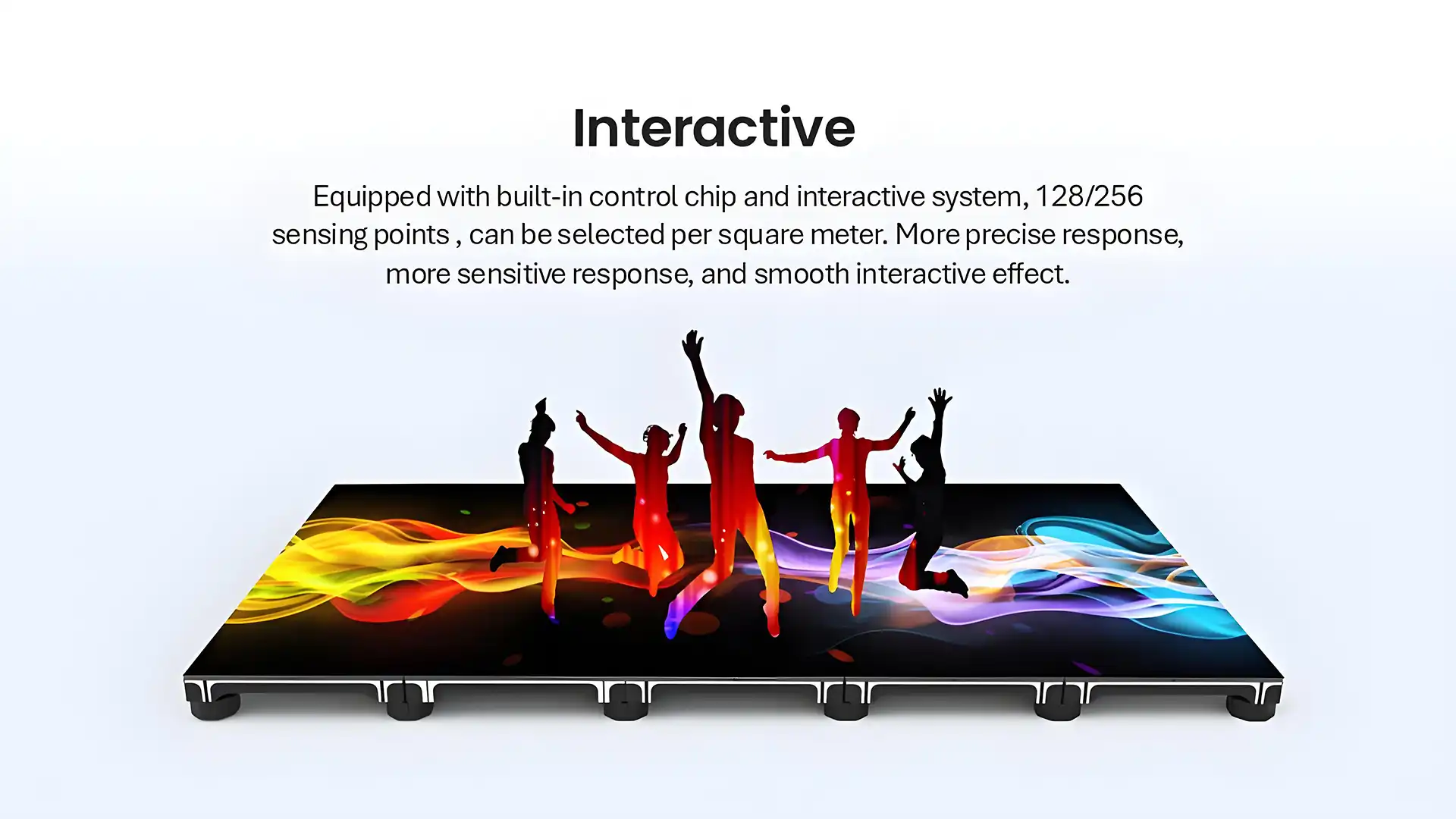

03. The floor LED display can be customized to support interactive features by adding pressure sensors, capacitive sensors, infrared sensors, and other equipment. It differs from a regular floor LED display in terms of interactive effects, control system software, and data transmission directions;

04. Applications for retail environments, museums and cultural centers, airports and transportation hubs, trade shows and conventions, stage performance, large shopping malls, interactive exhibition hall, medical and teaching, corporate events and conferences, sports arenas and stadiums, outdoor public spaces and more;

Virtual production is transforming film and TV sets with LED panels that display immersive, dynamic backgrounds, replacing costly physical sets. Driven by virtual reality, offer flexible, real-time adjustments and create realistic environments that help actors perform more naturally than against green screens.

01. Pixel Pitch: ≤ P2.6  (1.95 mm, 2.5mm, 2.604 mm);

02. Refresh Rate: ≥ 7680 Hz (recommended: 15360 Hz),supports 120 Hz or 240 Hz frame rates;

03. Brightness: ≥ 1200 nits (minimum hardware-level brightness, not software-adjustable);

04. Power Supply: Wide voltage (100–240 V), 50 Hz (China) / 60 Hz (overseas) AC frequency;

05. Receiving Card: Supports ≥512×512 resolution at >60 Hz (frame rate equivalent);

06. Device Frame Rate: >24 FPS ,higher FPS ensures smoother display and better static performance;

07. LEDs: Matte black finish (high contrast, non-reflective);

08. Contrast Ratio: ≥10,000:1;

09. Scanning: 8–16 scan (8 scan typical; scanning >16 not suitable for virtual production);

10. 3NH Gloss Meter: <3 (vertical screens), <4.5 (floor screens);

KSSDISPLAY control system of VMP+MX40 Pro+A10s Pro, Various applications for film production, virtual studio, XR stage and exhibition, online activities, immersive application scenarios;
