A virtual production LED wall is a large, high-resolution screen surrounding a film set, displaying real-time dynamic environments. Filmmakers capture final shots live without green screens or extensive post-production, as the walls project virtual scenes, provide natural lighting and reflections, and move in sync with the camera. These LED panels offer high resolution, enabling sharp footage from just a few meters away. Combined with camera tracking and virtual production tools, they allow real-time scene changes, precise light and color control, immersive environments, and reduced production time and costs. In recent years, LED walls have replaced chroma key sets in modern productions by enabling realistic, on-set digital backgrounds.

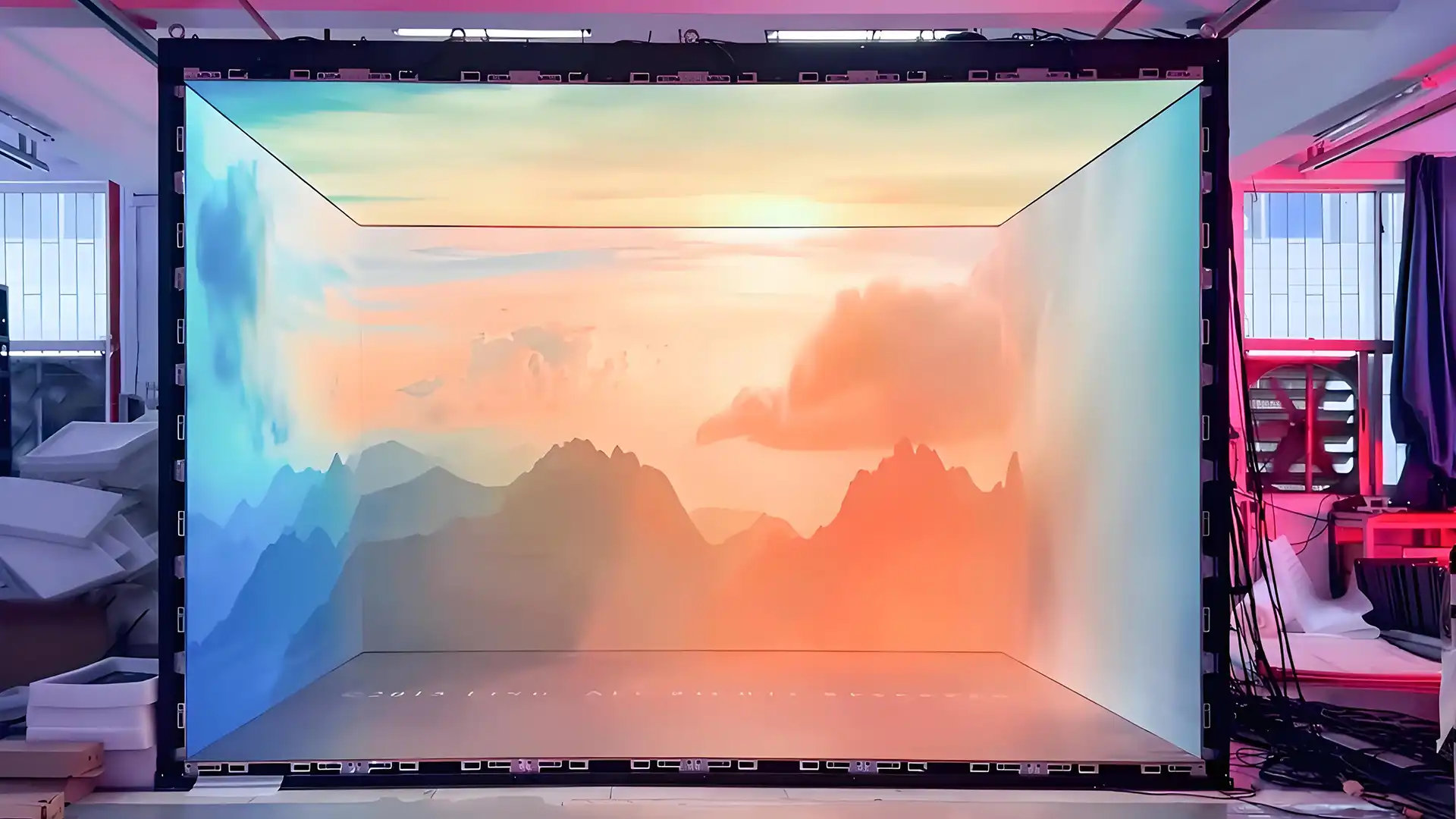

How it works: Interconnected LED panels form a curved or horseshoe-shaped screen around the filming area. A powerful game engine, such as Unreal Engine, generates real-time CGI displayed on the LED walls. A tracking system captures camera movement and instantly adjusts the virtual scene to maintain accurate perspective;

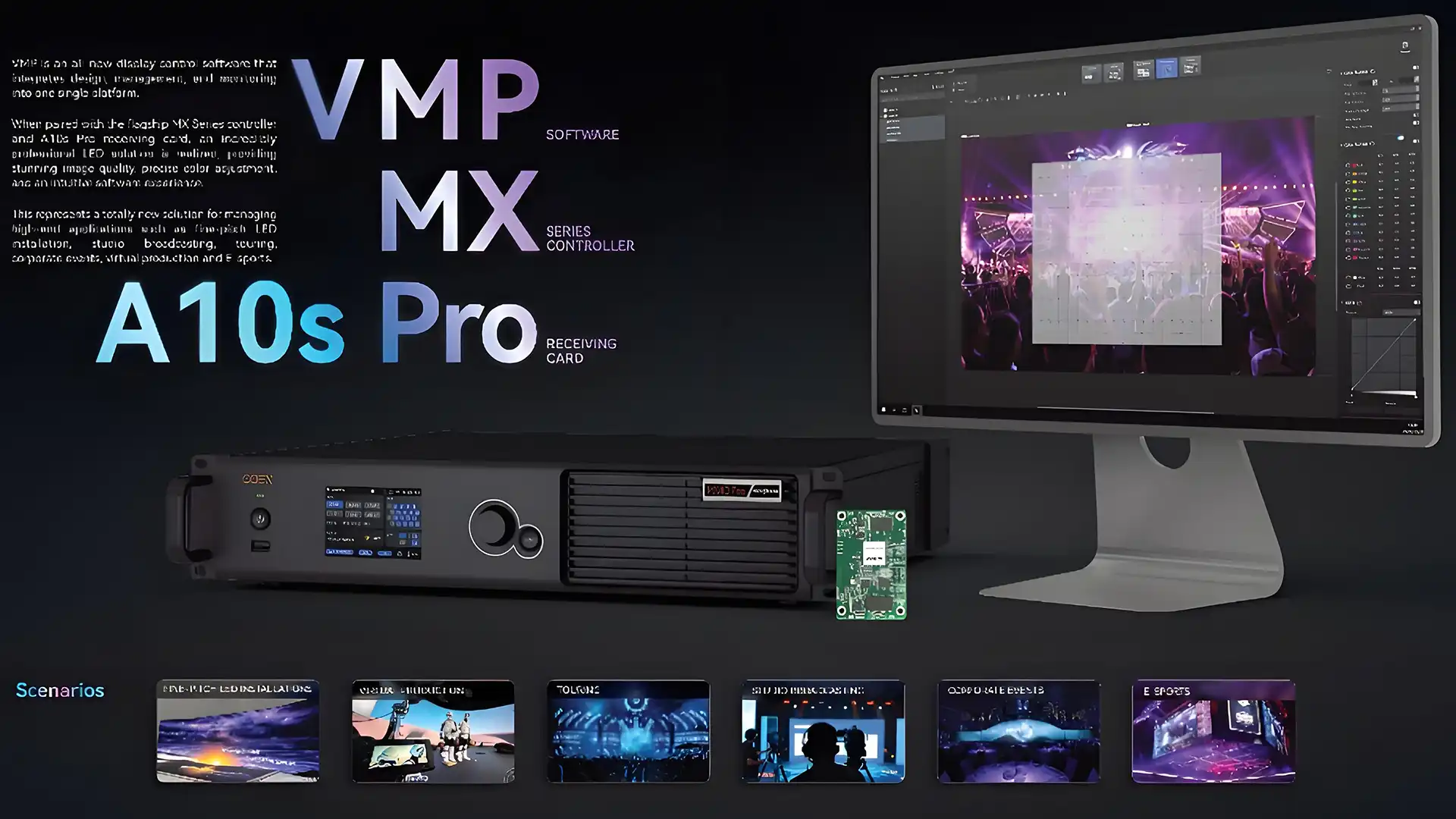

MX40 Pro+A10s Pro xR solution is built for camera shooting, solving black field and scan line issues with industry-leading image boosting technology that creates lifelike scenes. Powered by the new VMP LED control platform, it integrates design, monitoring, and management for seamless control:

01. Frame Multiplexing: Simultaneously reframe multiple video feeds. Using the camera's genlock phase offset, it enables concurrent output of multiple effects in one scene, enhancing efficiency and lowering costs;

02. Shutter Fit: Supports synchronization of LED display refresh rate and camera shutter settings, enabling automatic adaptation of the LED display to camera exposure time and frequency to reduce scan lines;

03. Phase Offset: Adjusting the output phase offset ensures perfect synchronization between the LED display and camera, preventing black frames and image tearing during capture;

04. HFR: Supports high frame rates up to 240Hz for smooth playback of fast-moving video content;

05. Color Replacement: Enables unrestricted color changes with minimal effect on other colors;

06. 14CH Color Correction: Accurately adjusts hue, saturation, and brightness for primary, secondary, and tertiary colors, with basic black-and-white adjustment, preserving intended color quality;

We offer Color Curve + 3D LUT, Contrast + Black Level, Scenario Presets, and Dual Image Booster. Our XR products are fully compatible with Brompton's software.

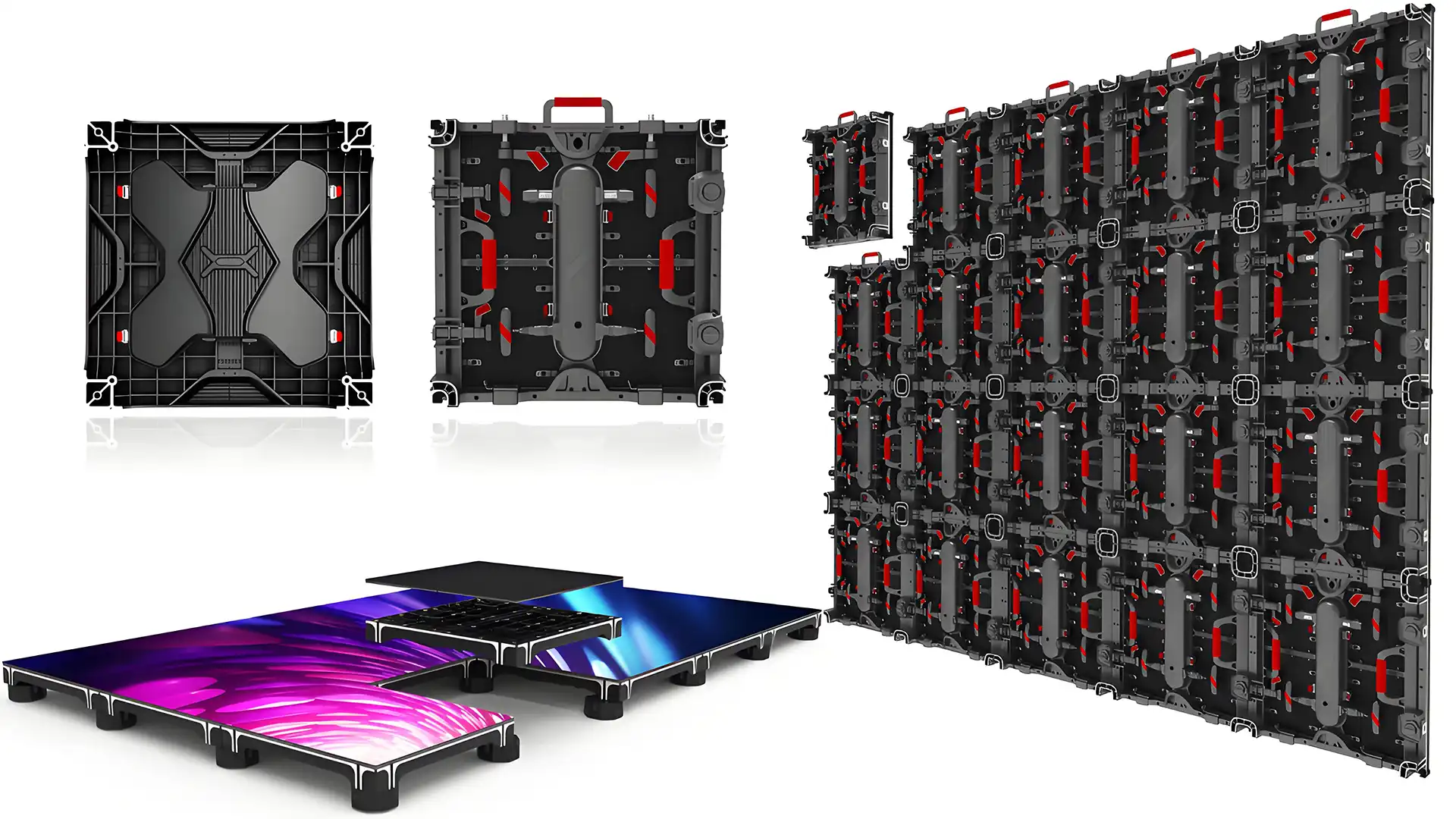

BOOM series is a premium indoor rental LED display, meticulously engineered to meet the rigorous demands of virtual production environments. Key features include:

a). Pixel pitch options of 1.95 mm, 2.315 mm,  2.604 mm, delivered in compact 500 × 500 × 84 mm cabinets;

b). An ultra-lightweight design weighing only 7.5 kg, combined with an ultra-slim profile of 84 mm thickness;

c). High-precision arc locking mechanisms that support adjustable curvature angles of –5°, –2.5°, 0°, +2.5°, and +5°, or alternatively –6°, –3°, 0°, +3°, and +6° for flexible configuration;

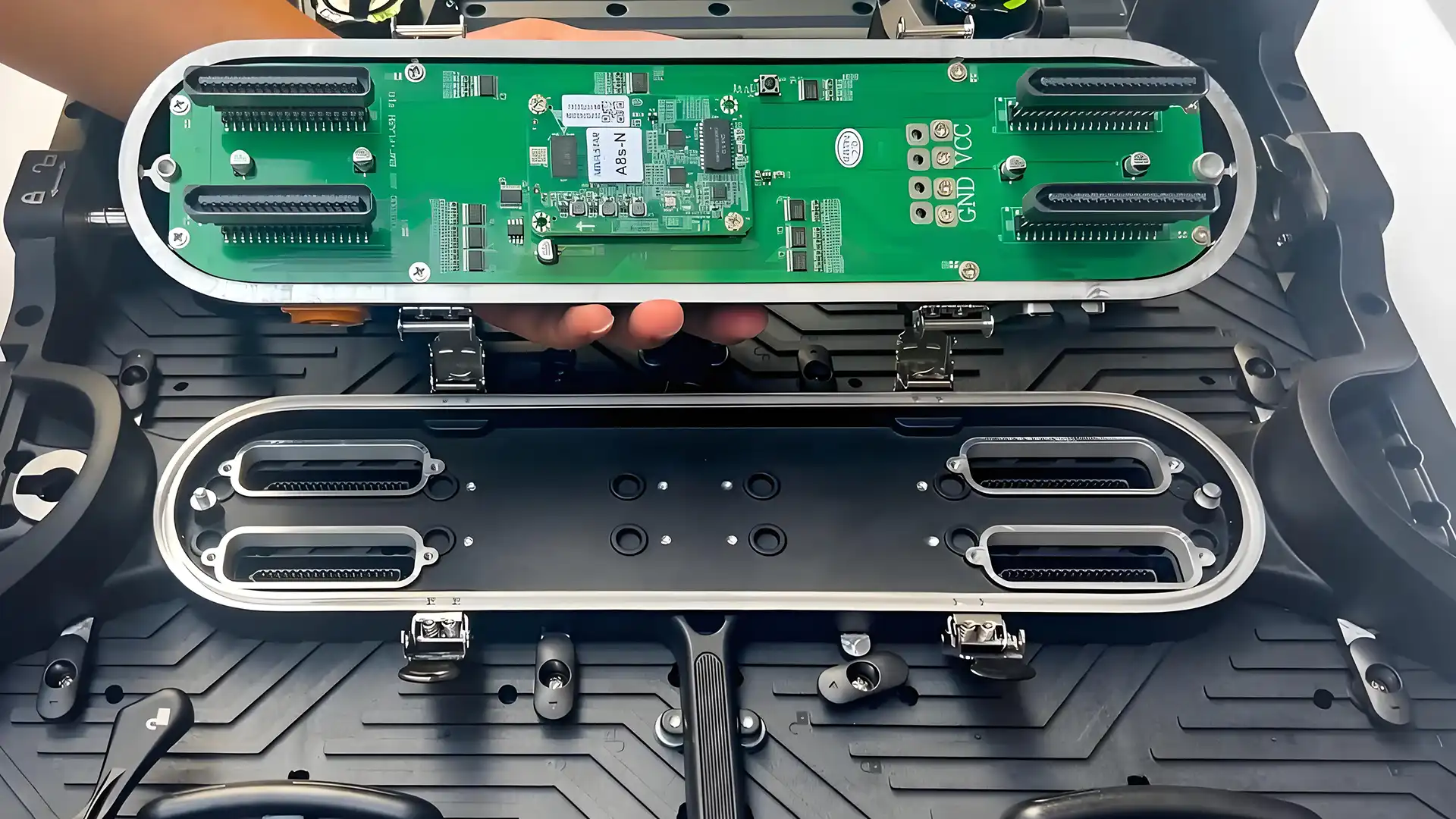

d). A die-cast aluminum enclosure ensuring high structural strength, dimensional accuracy, and resistance to deformation. The integrated design incorporates a power supply, receiver card, and rear cover, while a silent control box enables noise-free operation with efficient thermal dissipation;

e). Front and rear serviceability for convenient maintenance across diverse installation settings. Reinforced corner protection, strengthened edges, and bottom anti-collision features collectively enhance module safety. Seamless panel splicing via the arc lock system facilitates rapid assembly and minimizes visible gaps, resulting in a smooth visual surface;

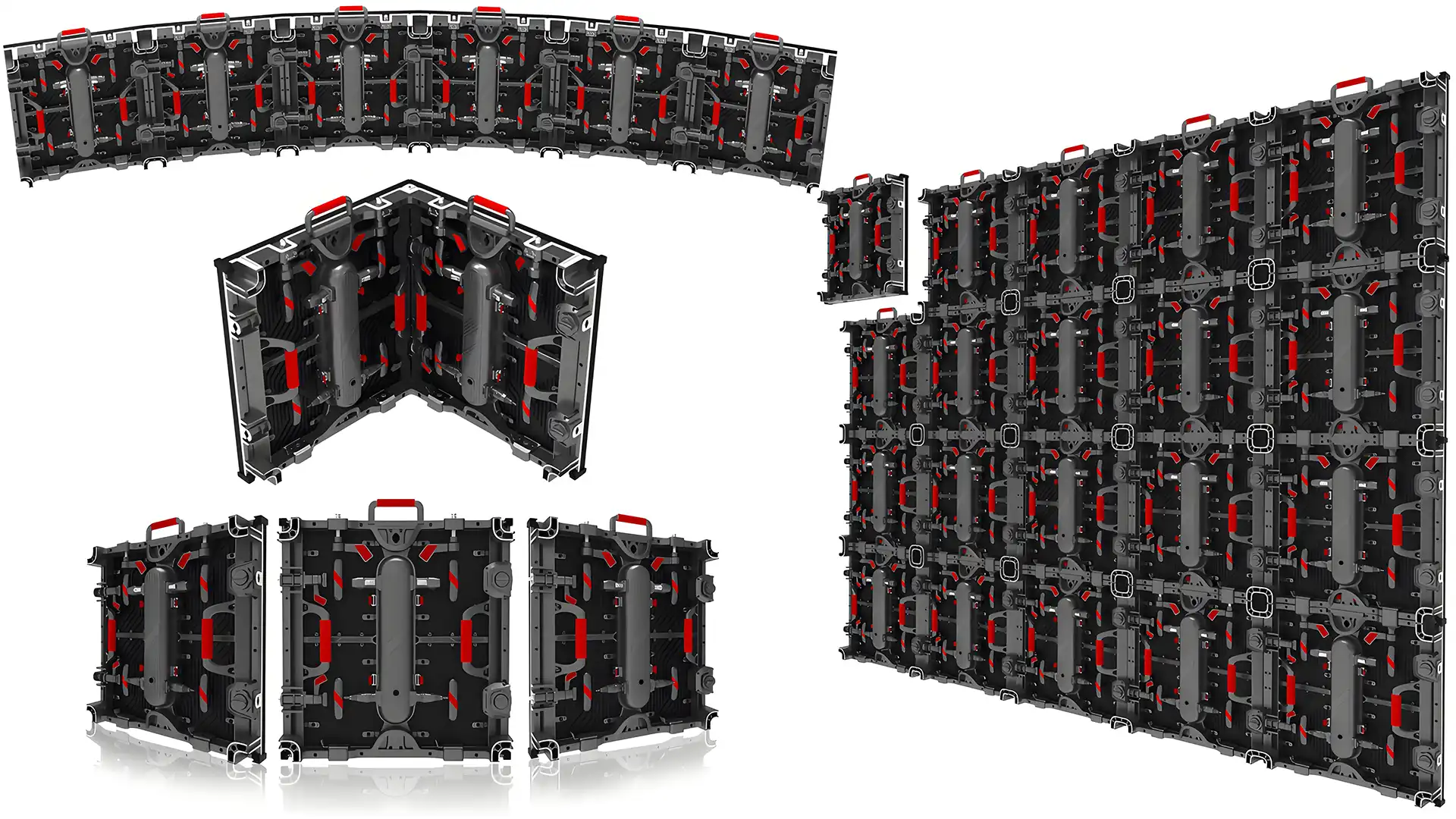

f). Support for flat, curved, corner-curved, right-angle, and circular configurations, with compatibility for suspension, stacking, and square tube truss mounting systems;

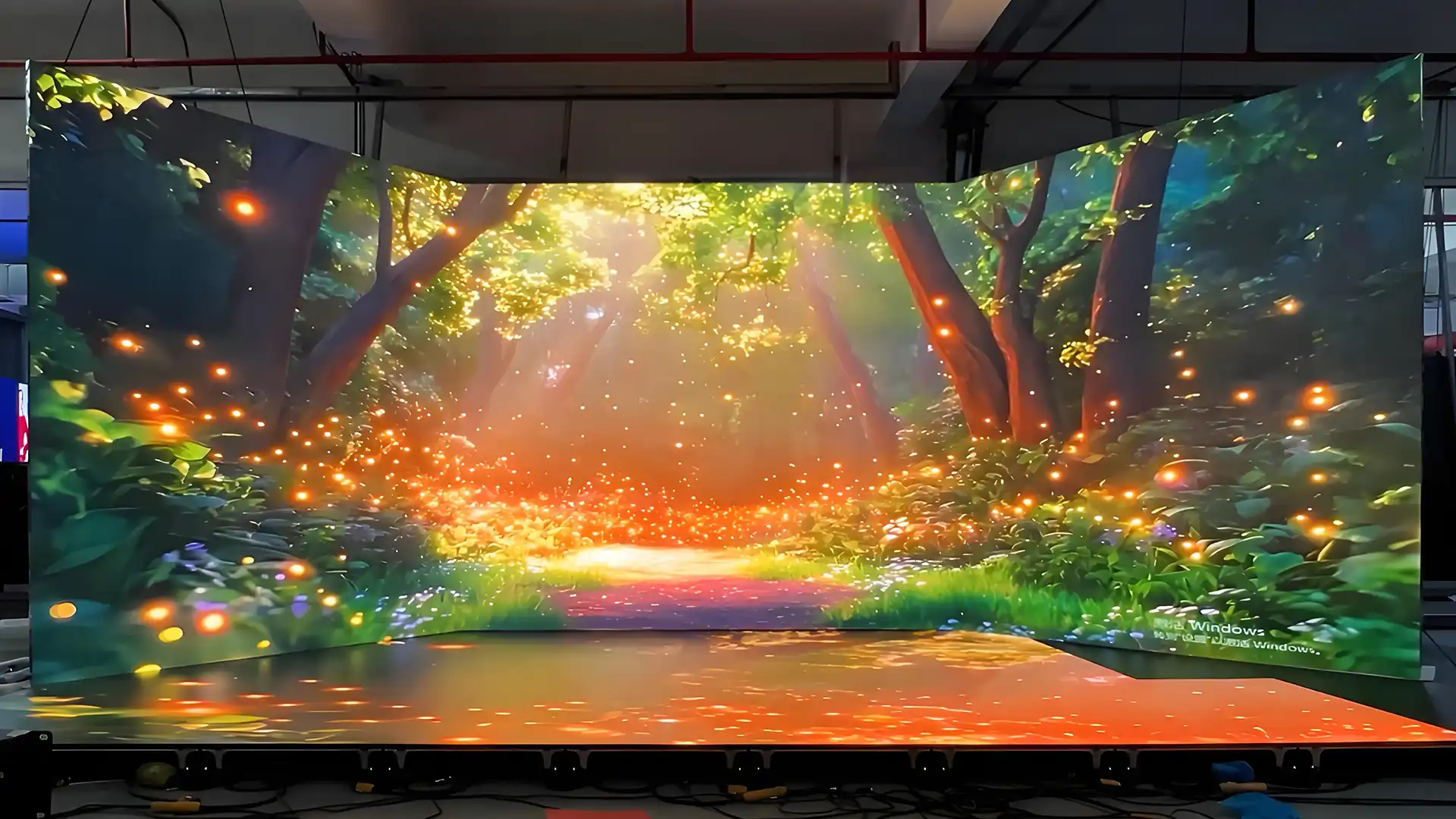

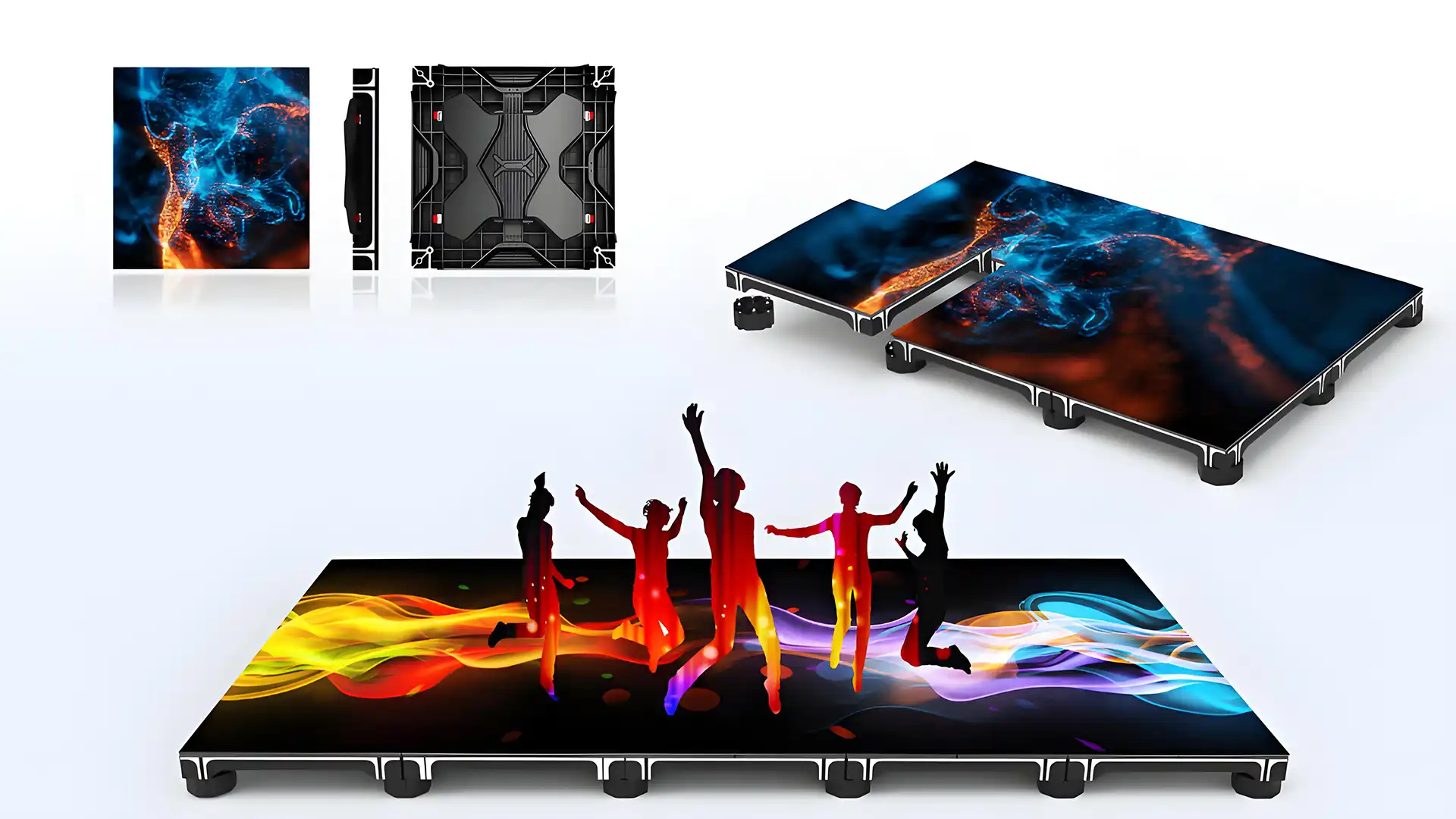

With the rapid advancement of virtual production technology, floor tile LED displays have emerged as indispensable tools that effectively address the limitations of traditional filming environments. Their core advantage—ground-level visualization—enables fully immersive virtual sets for applications in film, television, advertising, and live entertainment, significantly enhancing both visual realism and production efficiency. Key technical specifications and features include:

(1). Pixel pitch options of 1.95 mm, 2.5 mm, and 2.604 mm to accommodate diverse resolution requirements;

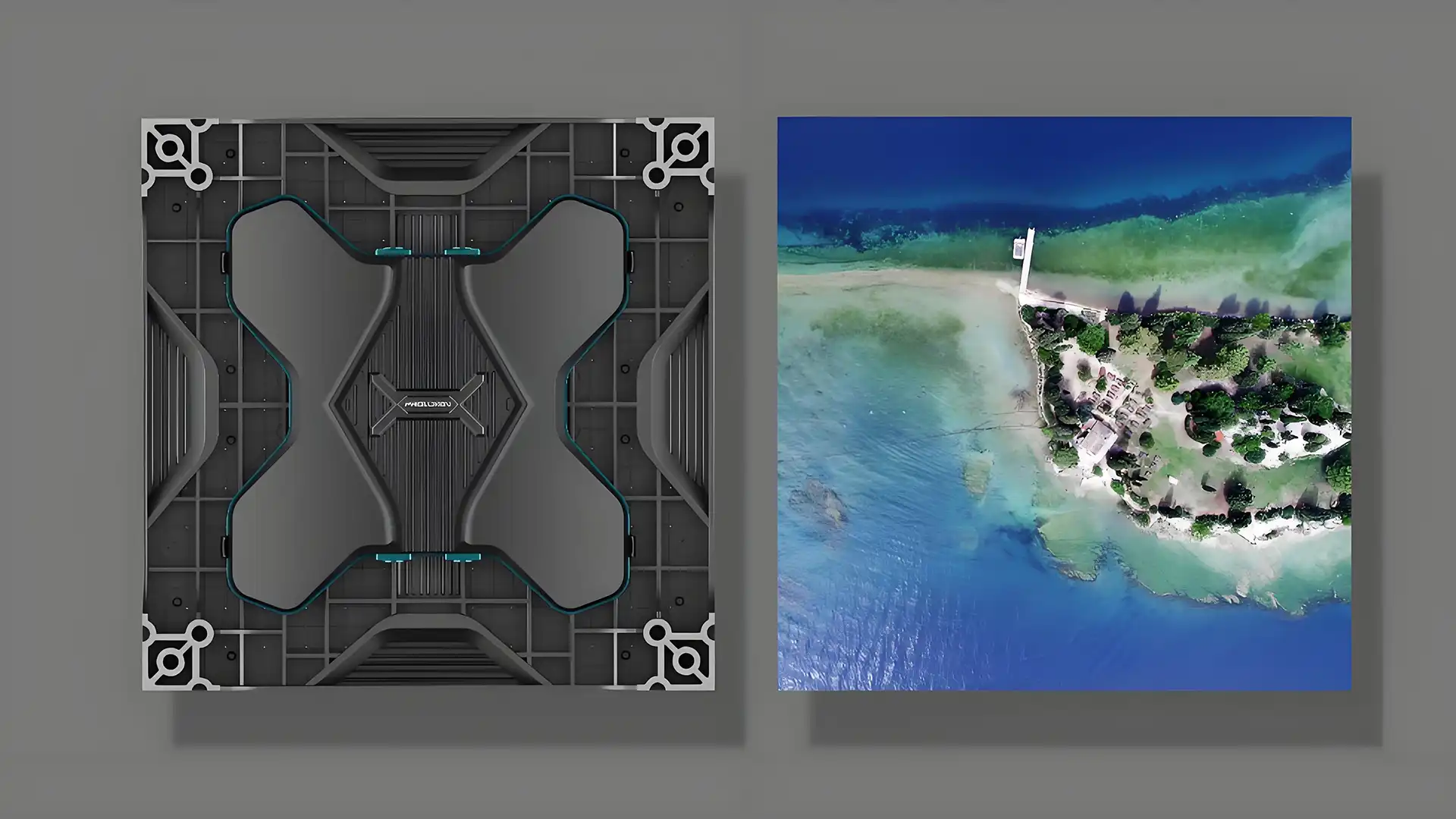

(2). LED cabinets measuring 500 × 500 mm with a lightweight design, weighing only 10.8 kg, ensuring portability and ease of installation;

(3). High-strength aluminum die-cast cabinet construction, capable of supporting a load capacity of up to 2000 kg/m², providing resistance to mechanical compression, including vehicle traffic;

(4). Customizable adjustable feet with a height adjustment range of 15–20 mm, enabling precise leveling and rapid assembly;

(5). GOB (Glue-on-Board) technology, offering enhanced protection against impacts, moisture, and wear, while facilitating easy cleaning. Additionally, edge protection can be integrated into the tile screens upon customer request, allowing for customization to meet specific project requirements;
