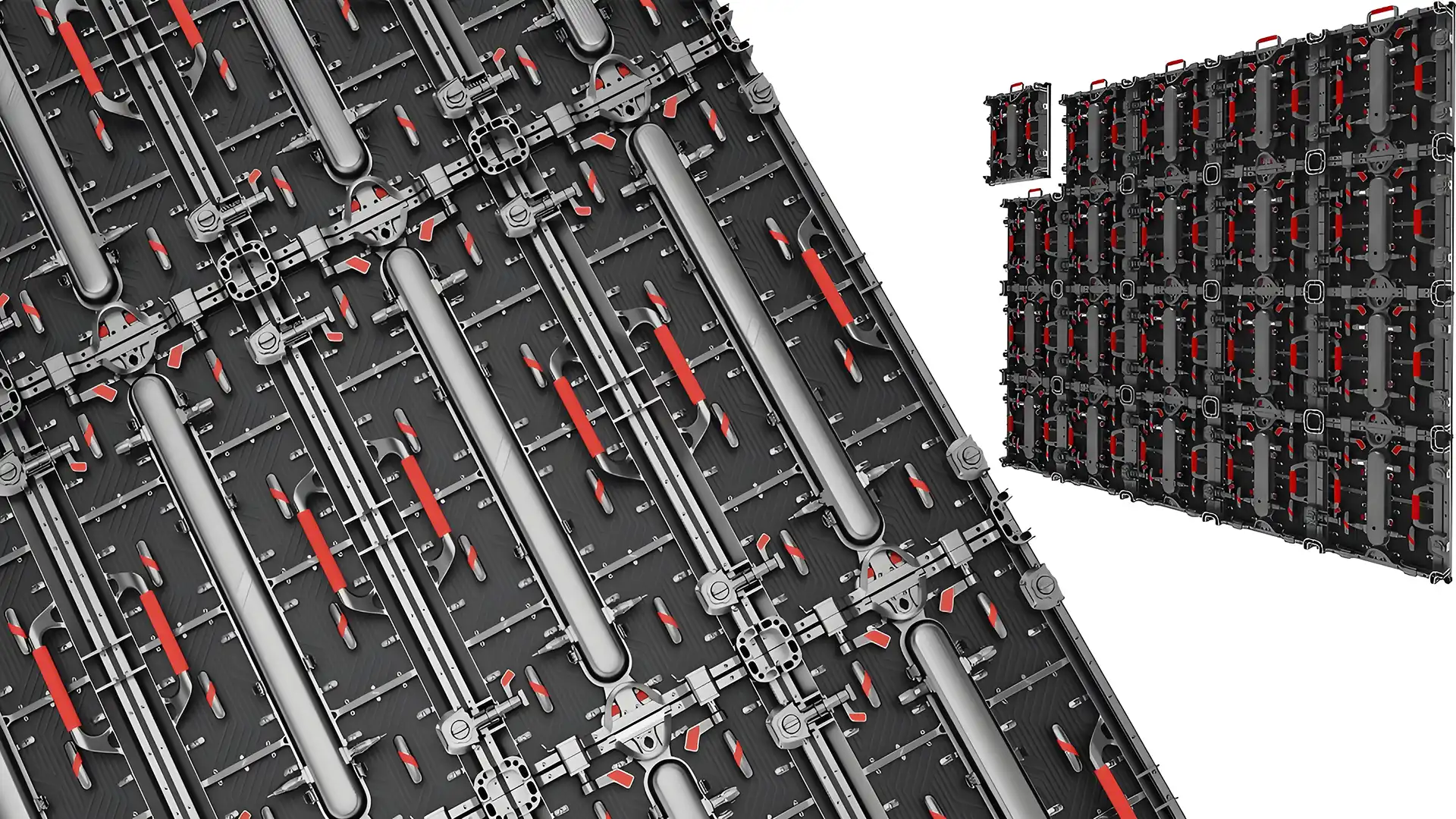

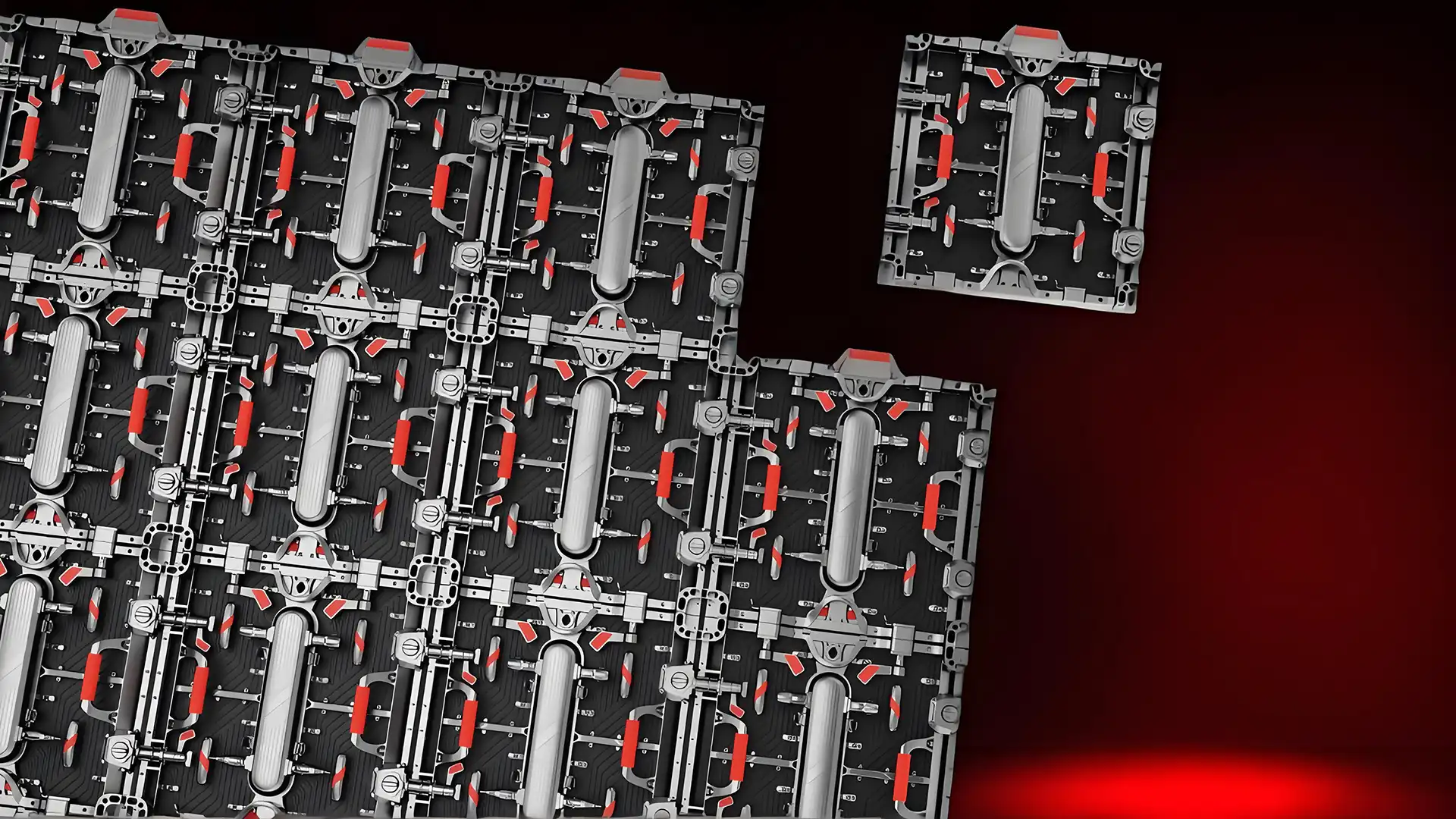

A. Fast Installation: Standard cabinet dimensions are 500×500 mm and 500×1000 mm, with cabinet weights of only 7.5 kg and 13.5 kg per unit respectively. The integrated auto-lock system enables rapid and effortless installation, significantly reducing both time and labor costs.

B. Superior Flatness and Seamless Splicing: High-precision die-cast aluminum cabinets ensure excellent panel flatness and seamless screen integration, delivering an immersive and visually consistent display ideal for indoor rental LED video walls.

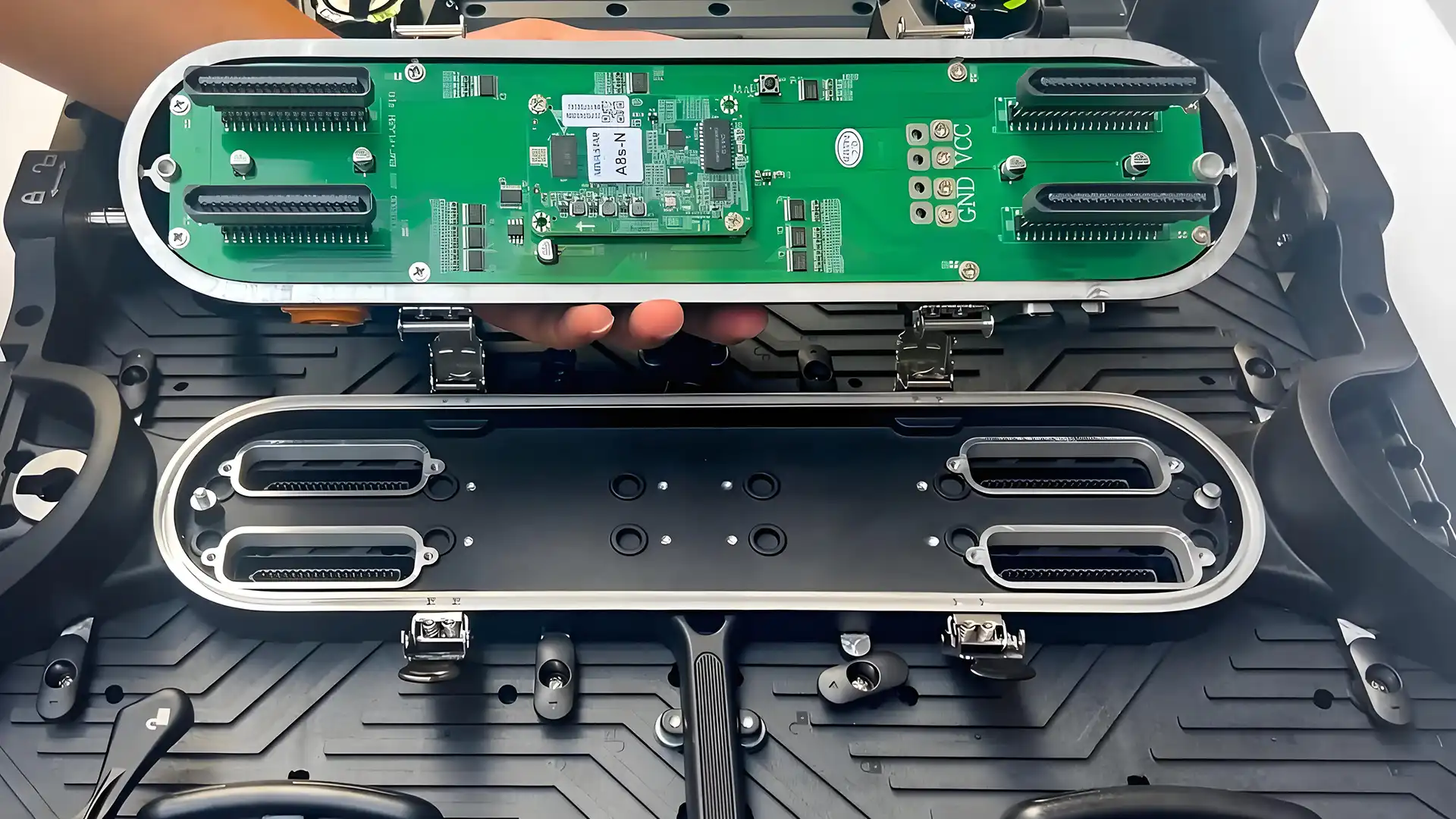

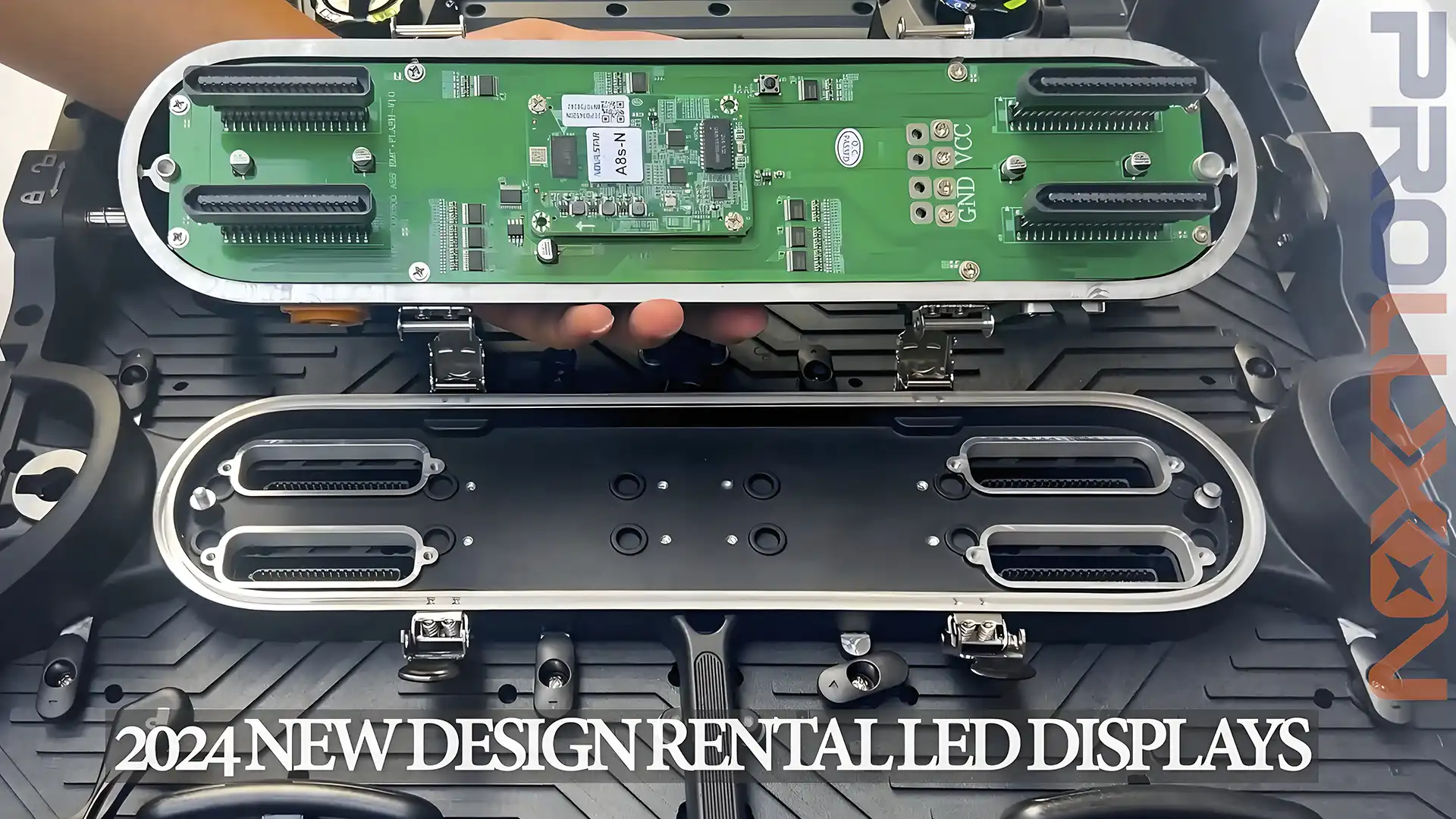

C. Front and Rear Maintenance Support: Featuring a wireless and snap-on modular design, the system supports convenient front and rear maintenance. LED modules for indoor rental displays can be replaced from the front in under 20 seconds, enabling efficient and hassle-free servicing.

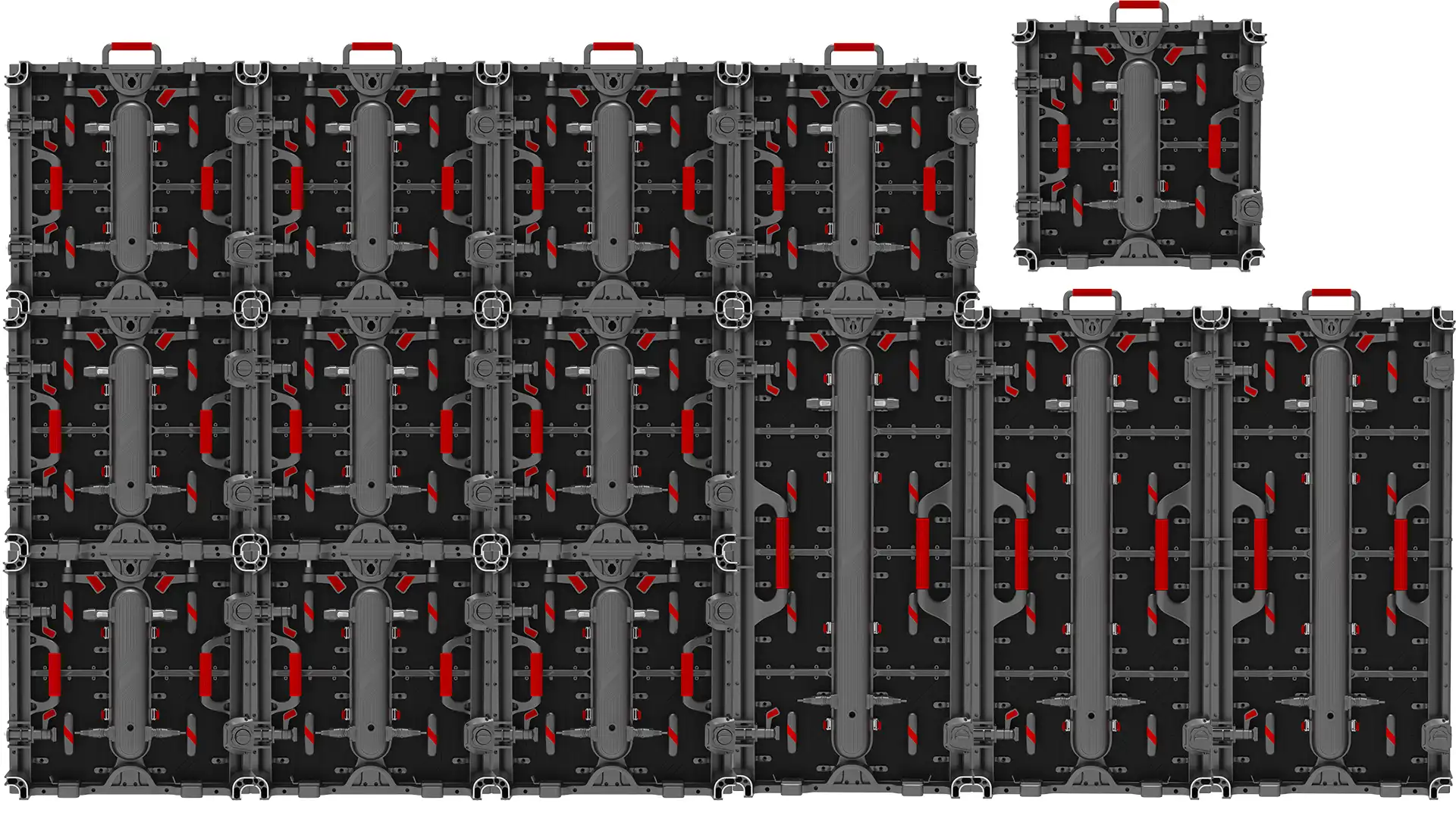

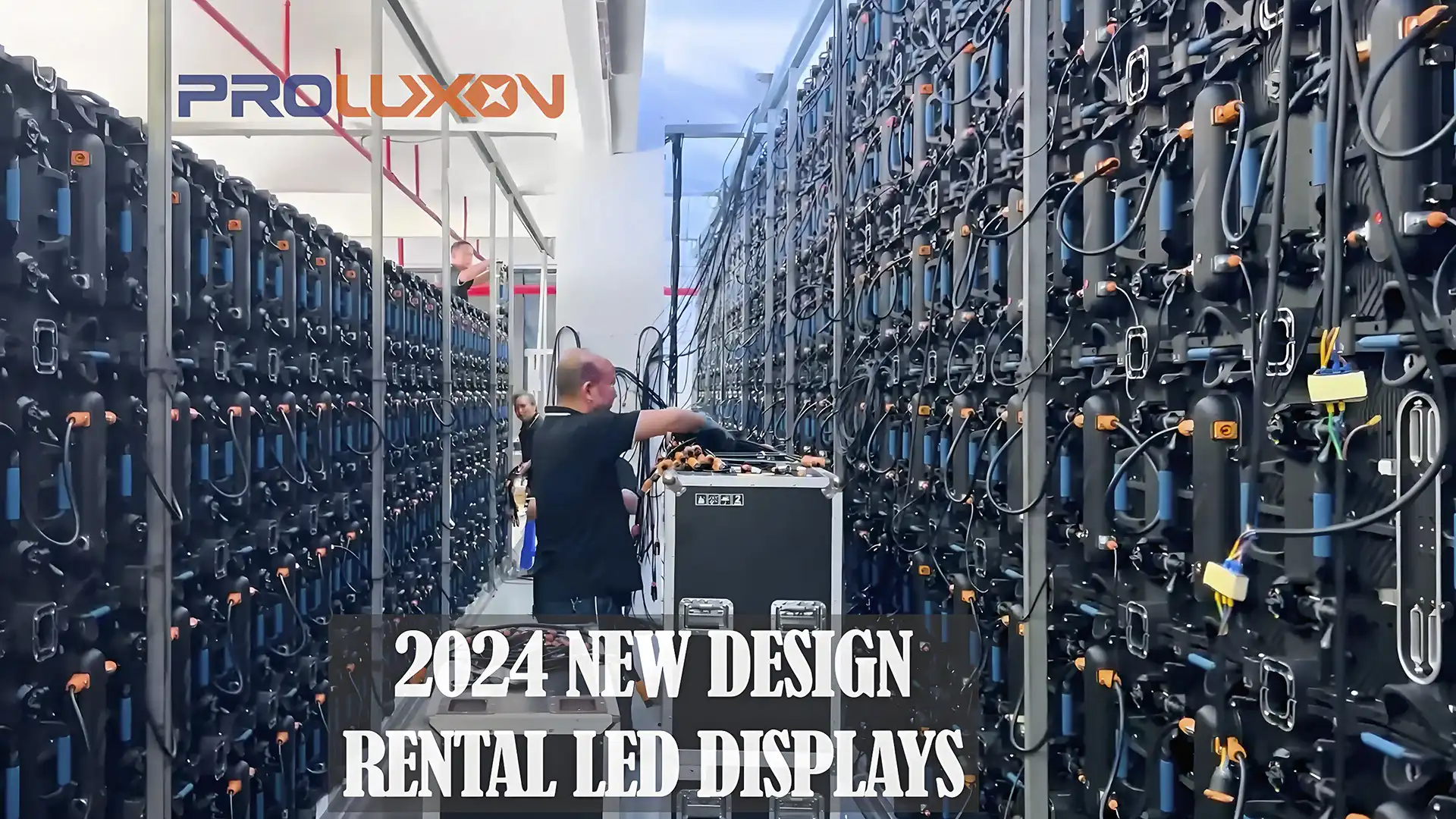

01. Indoor high-resolution models P1.5625, P1.95, P2.5, P2.604, P2.976, P3.91, and P4.81 are in high demand. Available in 500mm×500mm and 500mm×1000mm sizes, they support flexible configurations;

02. Ultra-thin 84mm profile and lightweight design, weighing just 7.5kg and 13.5kg; front and rear maintenance access enables quick, wireless installation;

03. Four-corner protection with an innovative half-arc lock design compatible with straight and curved setups, enabling quick angle adjustment and fixation at -5°, -2.5°, 0°, +2.5°, and +5° or -6°, -3°, 0°, +3°, and +6°;

04. Multiple installation options—hanging, stacking, and square tube truss—are available to meet diverse site requirements; pre-drilled holes facilitate nylon tie attachment for truss installation;

05. All models support customized right angles with a 45° bevel cut to suit various right-angle applications;

06. The applications include live events, concerts, trade shows, exhibitions, conferences, seminars, weddings, public gatherings, festivals, broadcast studios, retail, advertising, and other rental scenarios;

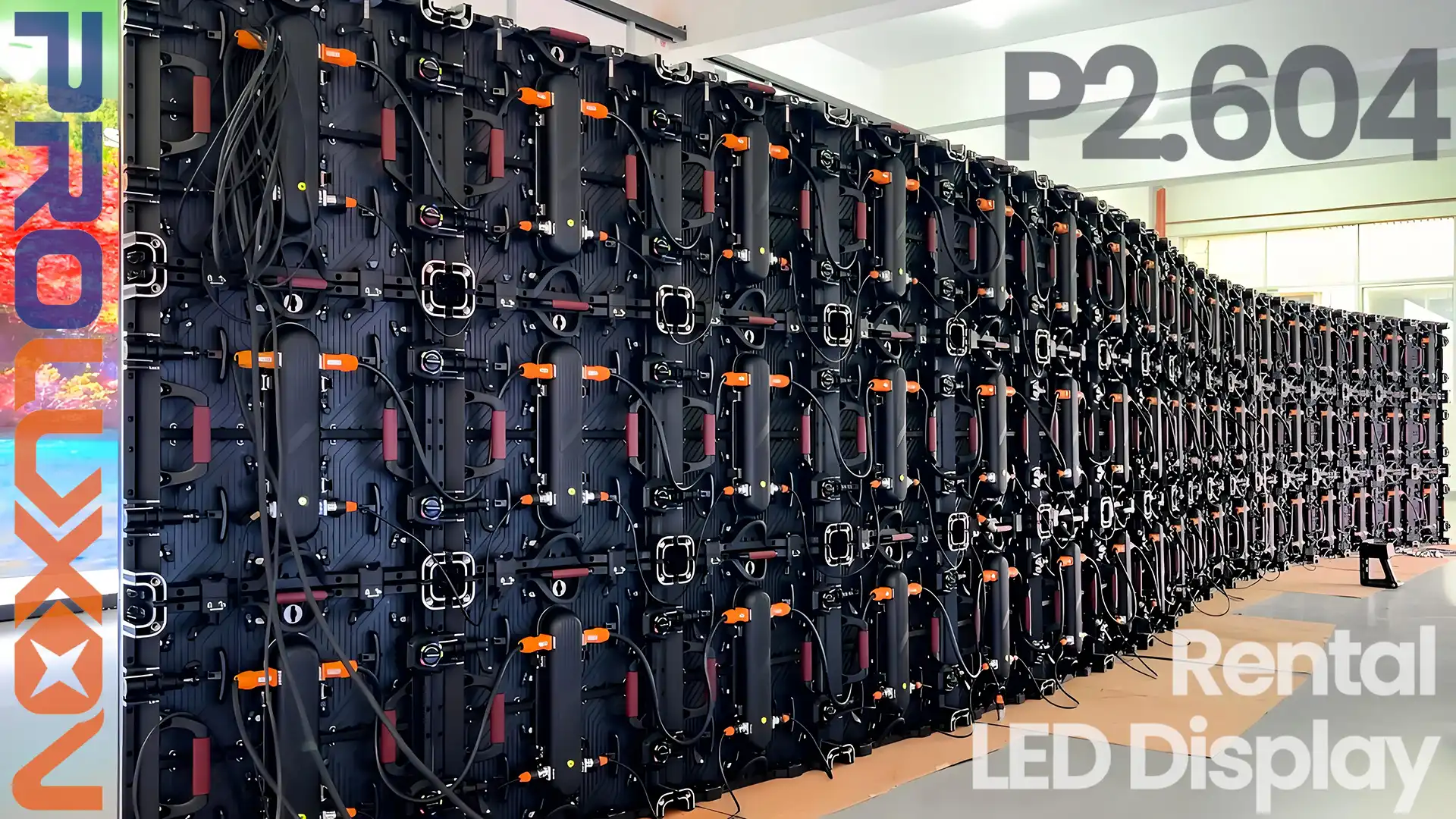

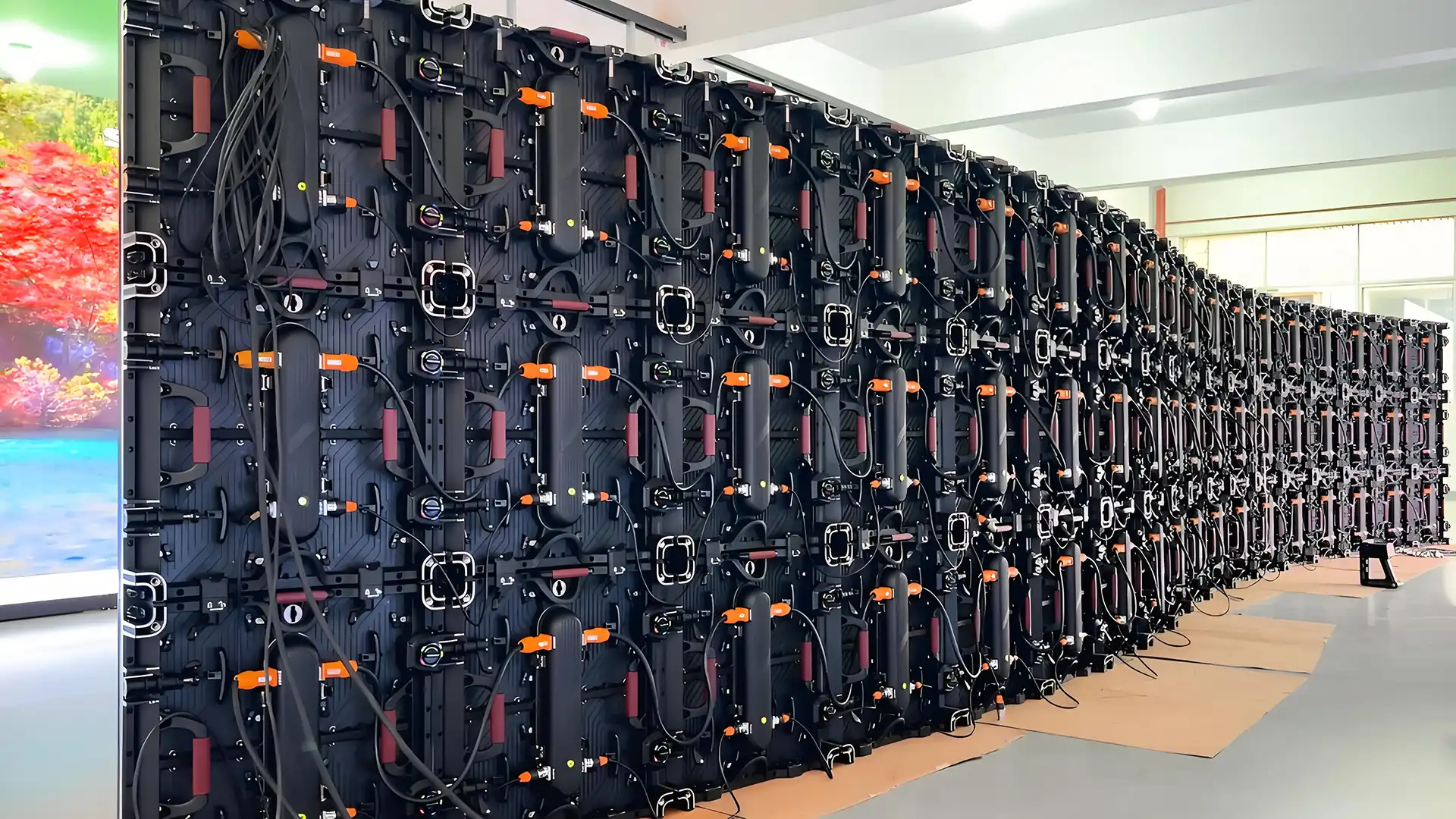

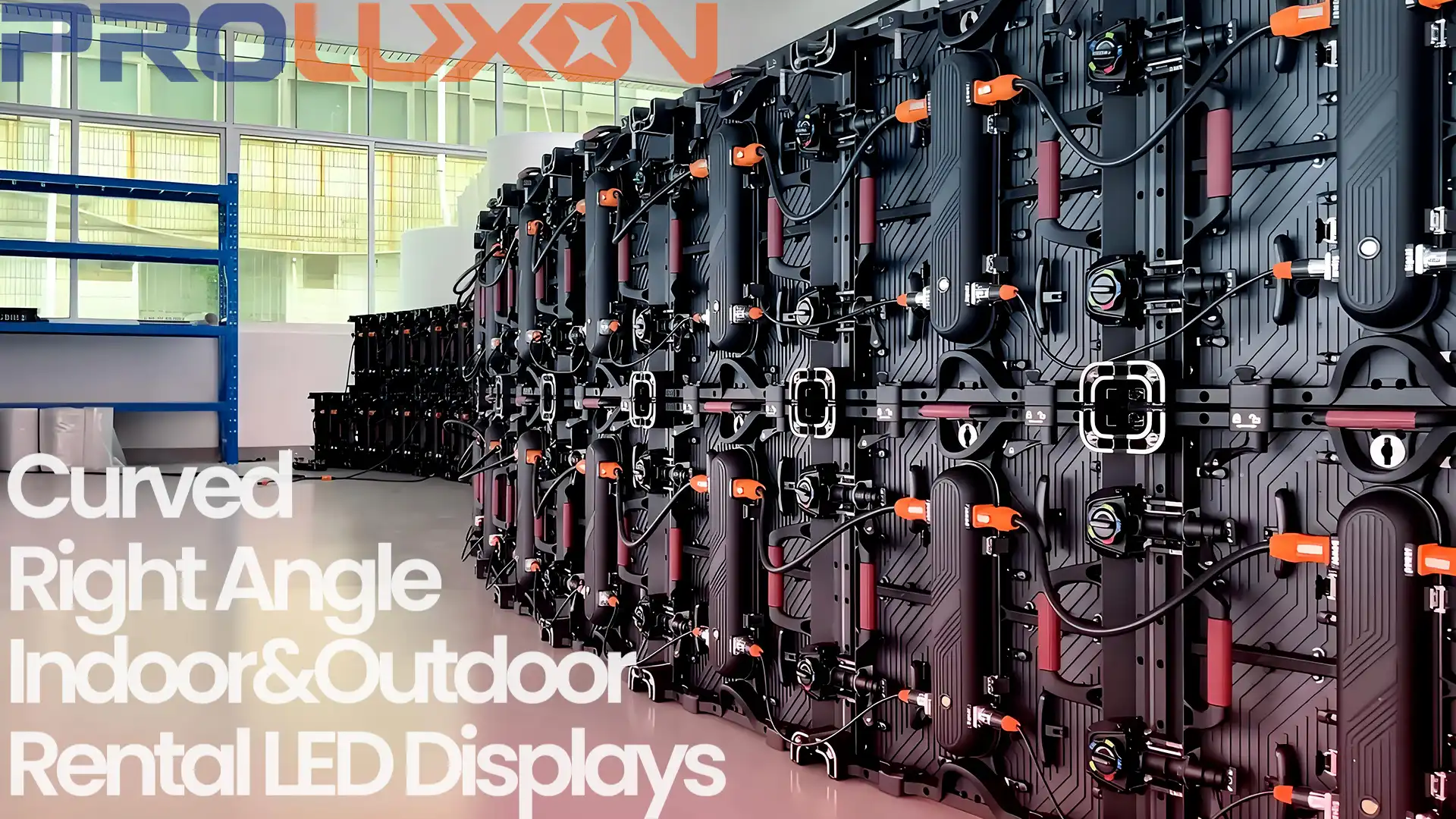

Curved rental indoor LED screen refers to an LED display solution designed for temporary deployment and available for rent by event organizers. The structure of rental LED screens is characterized by lightweight design, slim profile, and rapid assembly and disassembly, enabling efficient installation and transportation. These screens support various mounting methods, including floor-standing brackets, wall-mounted fixtures, and suspended rigging systems. Widely utilized in events such as exhibitions, concerts, conferences, trade shows, and other occasions requiring high-quality temporary visual displays, these modular units can be configured not only as flat panels but also as curved installations. With a single cabinet supporting multiple configurations, they offer versatile adaptability to meet diverse requirements for screen shape and layout;

Both 500×500 mm and 500×1000 mm LED panels are available in inner arc or outer arc configurations, enabling curved and S-shaped designs for versatile and creative installations. Currently, two sets of angular adjustment options are supported: –5°, –2.5°, 0°, +2.5°, +5° or –6°, –3°, 0°, +3°, +6°;

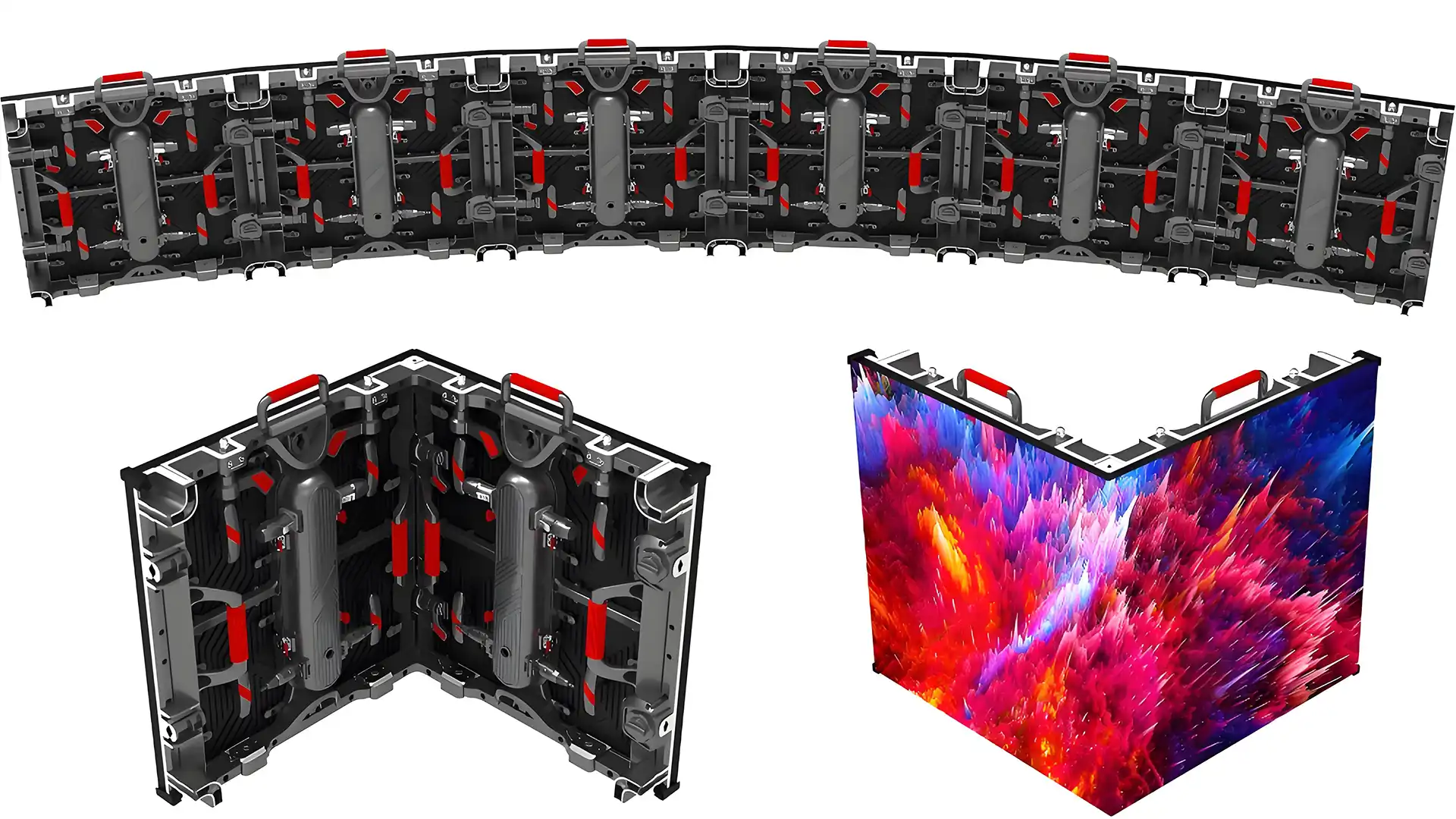

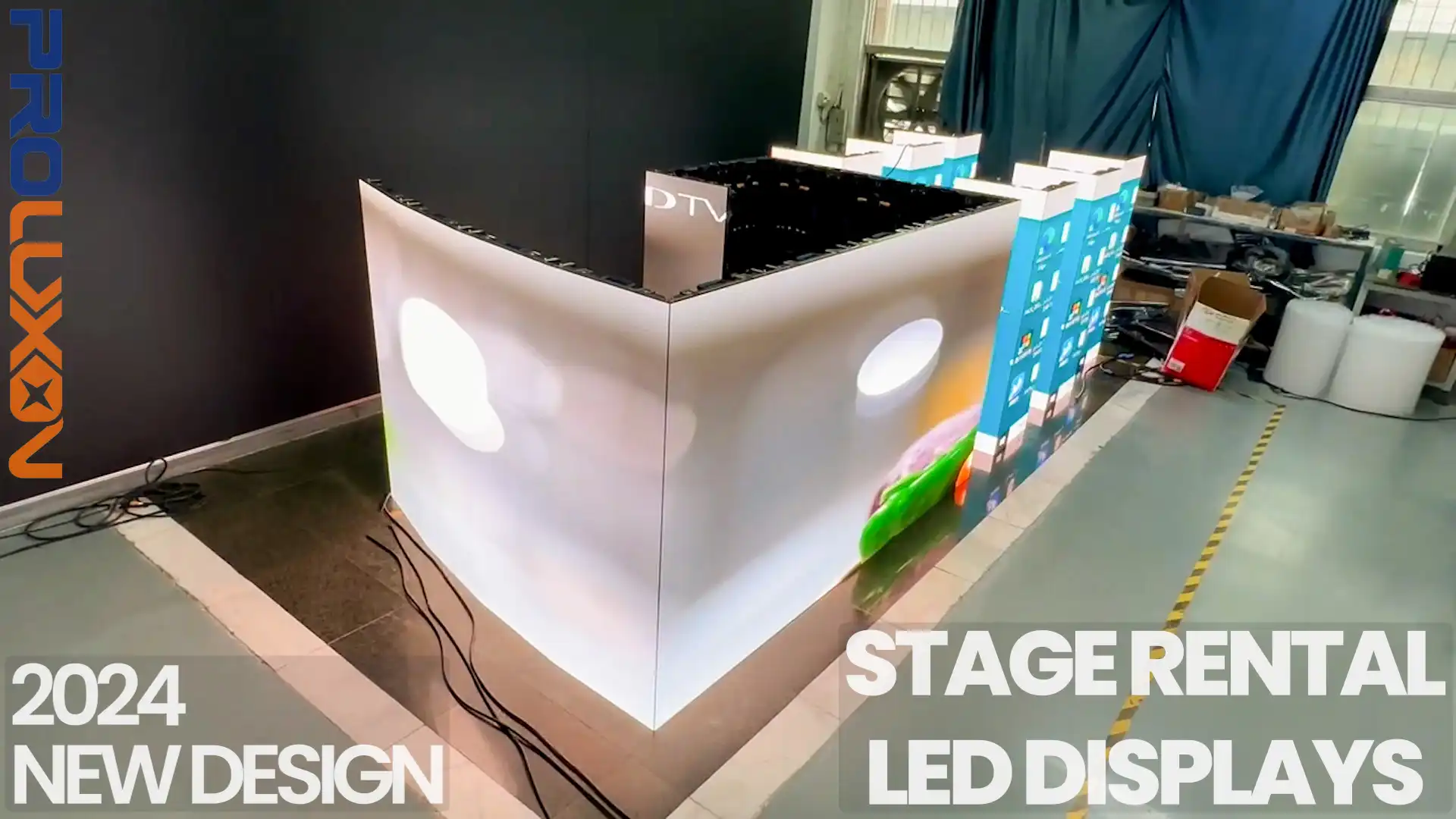

Right angle indoor rental LED display uses 45-degree beveled cabinets for seamless 90-degree splicing, enabling corner and cube configurations and other creative setups:

a). 45-Degree Bevel Design: Unlike standard LED cabinets with flat edges, right-angle cabinets have a 45-degree beveled edge, allowing two units to form a precise 90-degree corner when joined;

b). Seamless Corners: This design eliminates visible gaps and distortions from standard flat panels joined at corners, delivering a truly seamless visual experience;

c). Creative Configurations: Right-angle displays are perfect for building 3D structures such as cube screens and pillar displays, commonly used in exhibitions and stage events;

d). Rental Market Focus: Built for quick setup, and durability, these displays are ideal for the rental market;

e). Easy Assembly: Many models feature quick-locking and patented self-locking mechanisms, enabling fast setup and disassembly—sometimes by one person;

f). Front and Rear Maintenance: The modular design allows access from both sides, simplifying installation, repair, and maintenance;

i). Lightweight & Slim: Designed for rental use, these cabinets feature a lightweight, slim design that simplifies transport and setup.

Common Application for exhibition booths of design eye-catching 3D displays, concerts and stage backdrops of Create unique, immersive environments, creative installations of  enable versatile, custom designs for special events.

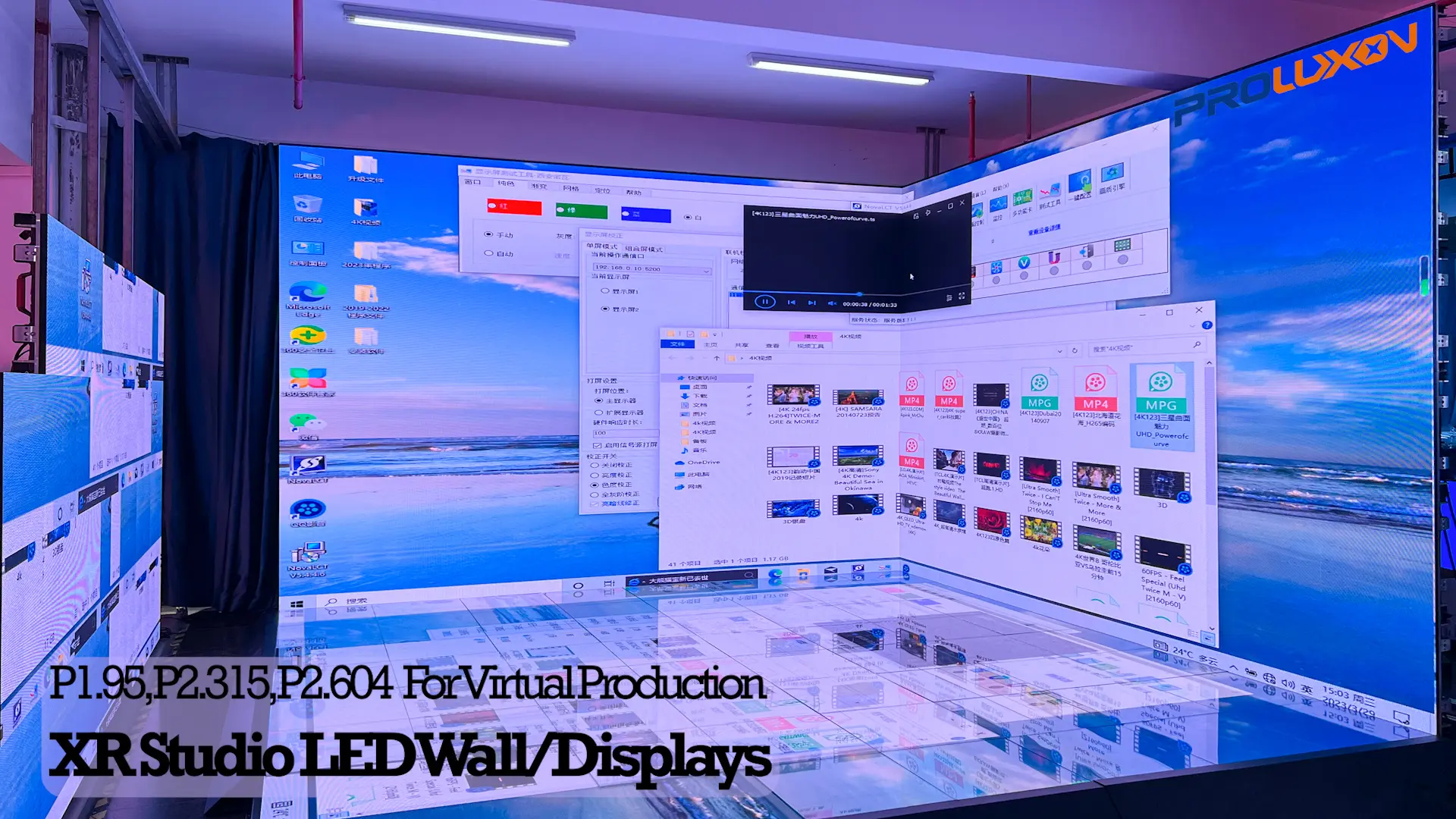

Virtual production is transforming film and TV sets with LED panels that display immersive, dynamic backgrounds, replacing costly physical sets. These panels, driven by virtual reality, offer flexible, real-time adjustments and create realistic environments that help actors perform more naturally than against green screens.

01. Pixel Pitch: ≤ P2.6  (1.95 mm, 2.315 mm , 2.604mm);

02. Refresh Rate: ≥ 7680 Hz (recommended: 15360 Hz), supports 120 Hz or 240 Hz frame rates ;

03. Brightness: ≥ 1200 nits (for indoor post-production, min level brightness, not software-adjustable);

04. Power Supply: Wide voltage (100–240 V), 50 Hz (China) / 60 Hz (overseas) AC frequency;

05. Receiving Card: Supports ≥512×512 resolution at >60 Hz (frame rate equivalent);

06. Device Frame Rate: >24 FPS, higher FPS ensures smoother display and better static performance;

07. LEDs: Matte black finish (high contrast, non-reflective);

08. Contrast Ratio: ≥8000:1 ;

09. Scanning: 8–16 scan (8 scan typical, scanning >16 not suitable for virtual production);

10. 3NH Gloss Meter: <3 (vertical screens), <4.5 (floor screens);

KSSDISPLAY control system of Novastar VMP+MX40 Pro+A10s Pro, Various applications for film production, virtual studio, XR stage and exhibition, online activities, immersive application scenarios;
