Outdoor LED Displays with Arc, Corner, Round and Curved Design

Curved Outdoor Advertising LED Display

Custom outdoor LED displays are available in curved, arched, circular, and corner configurations, designed for innovative commercial advertising and marketing applications. Key specifications include:

A. Pixel Pitch (Outdoor): 2.976 mm, 3.91 mm, 4.81 mm, 6.25 mm, 7.81 mm, and 10.42 mm;

B. Dimensions: 624.96 mm × 1000 mm × 83 mm and 562.5 mm × 1000 mm × 83 mm with 90-degree mounting and other custom sizes available;

C. Energy-efficient design featuring iron modules and structural components, high-brightness options available in the ranges of 4,500–5,500 nits, 5,500–6,500 nits, and above 10,000 nits;

D. IP65-rated waterproof protection and 5VB fire resistance, ensuring a high level of durability, lightweight cabinet design facilitates easy installation and handling, supports both front and rear maintenance access;

E. Detachable power box with wireless connectivity enables rapid assembly, disassembly, and maintenance;

F. Applications include digital signage, DOOH, OOH advertising, chain retail stores, street furniture, commercial display installations, sports stadiums and arenas, media advertising, retail environments, government buildings, museums and exhibitions, billboards, shopping malls, building facades, concert venues, artistic installations, airports and train stations, interactive displays, 3D advertising, and wayfinding systems.

Consult Sales Team for Pricing

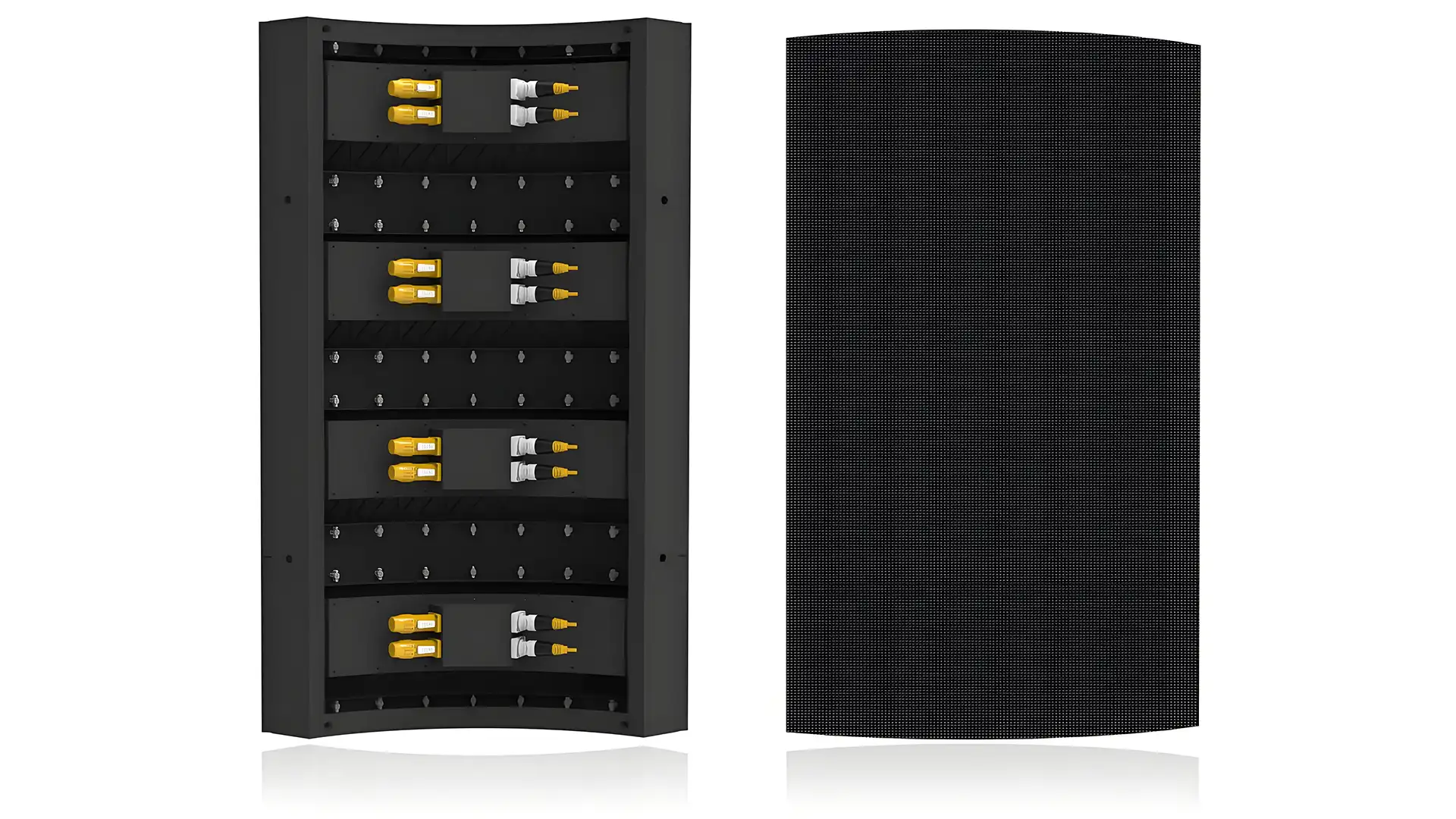

Curved Outdoor LED Cabinet Design Characteristic

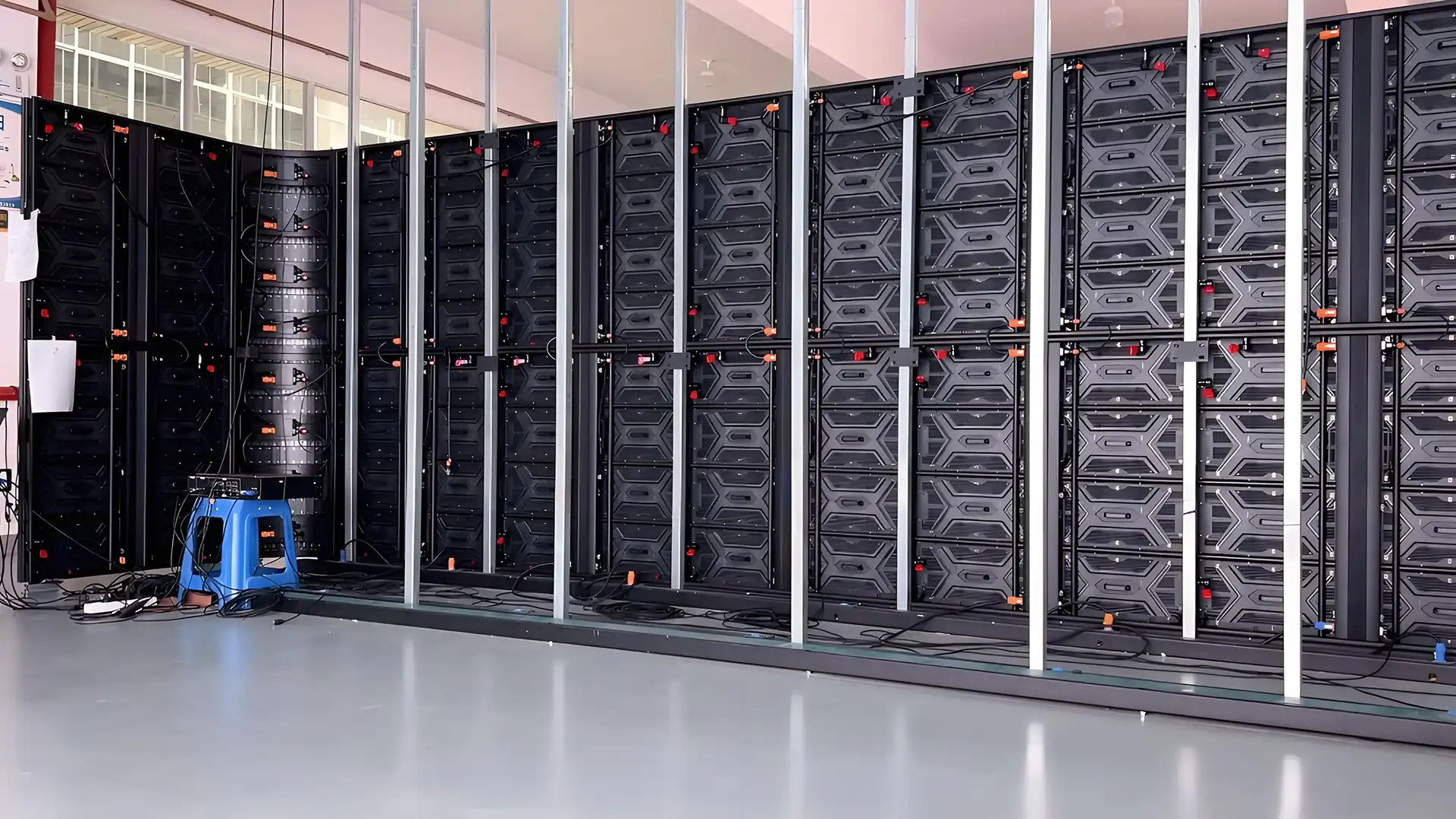

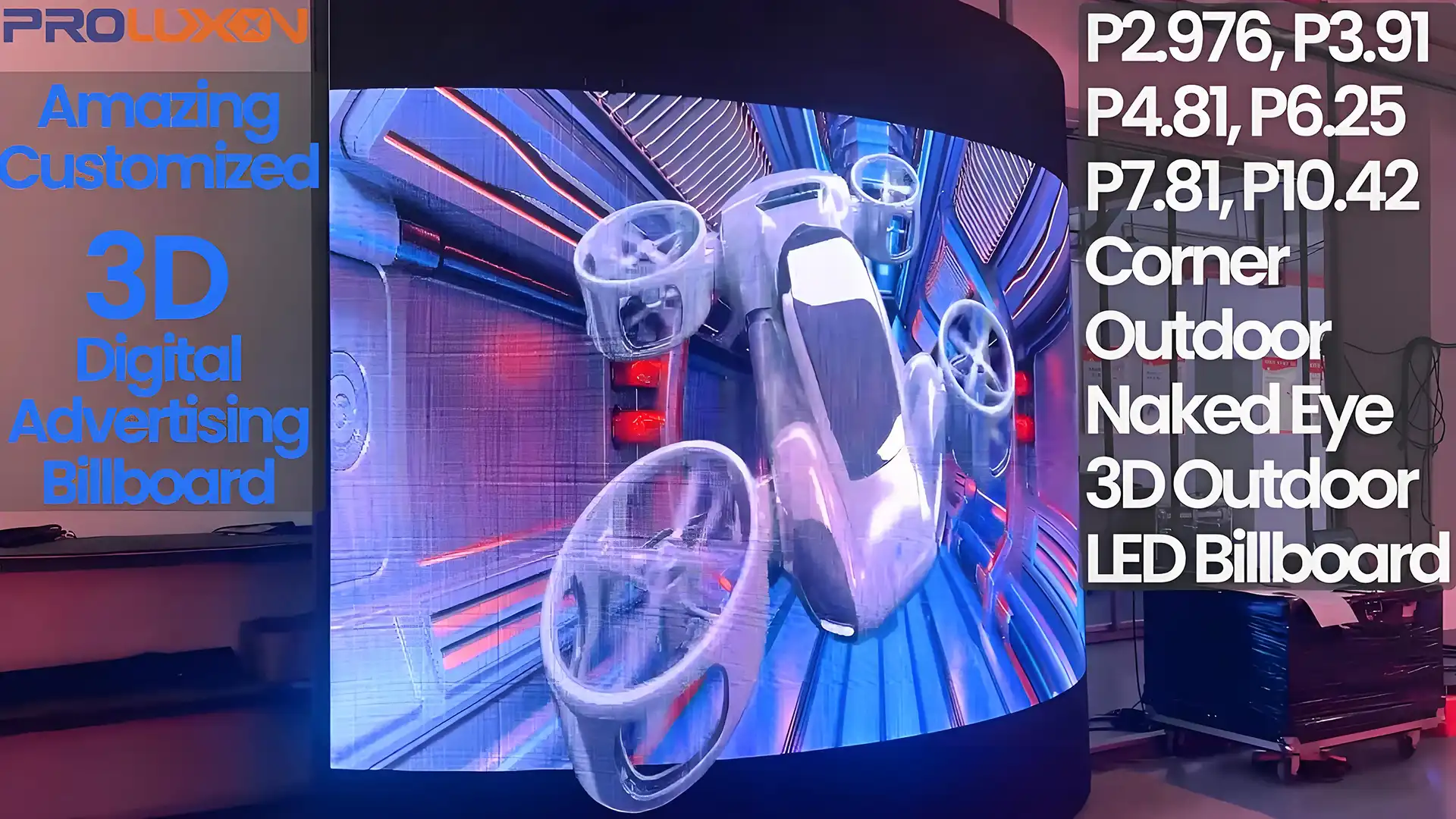

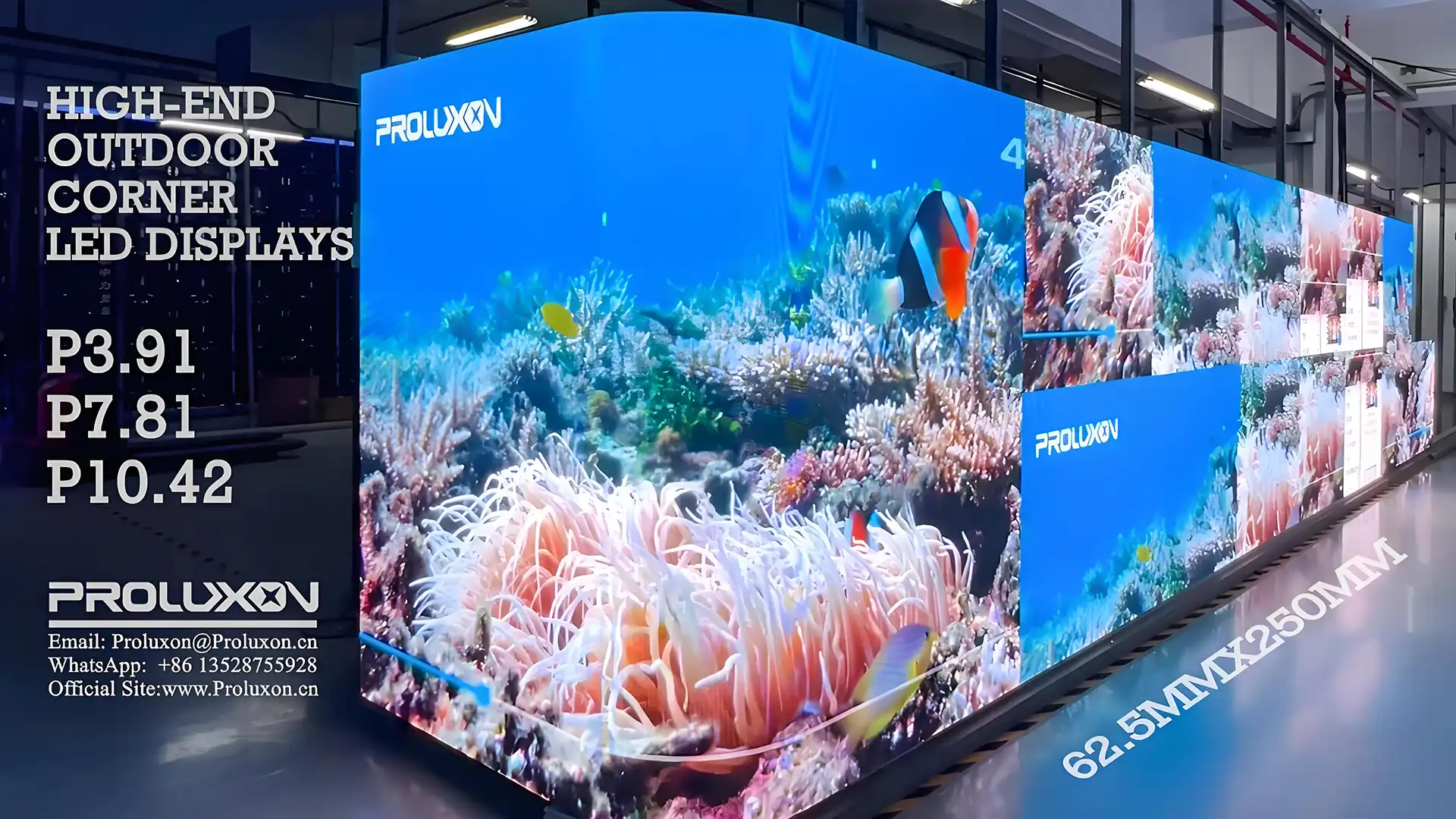

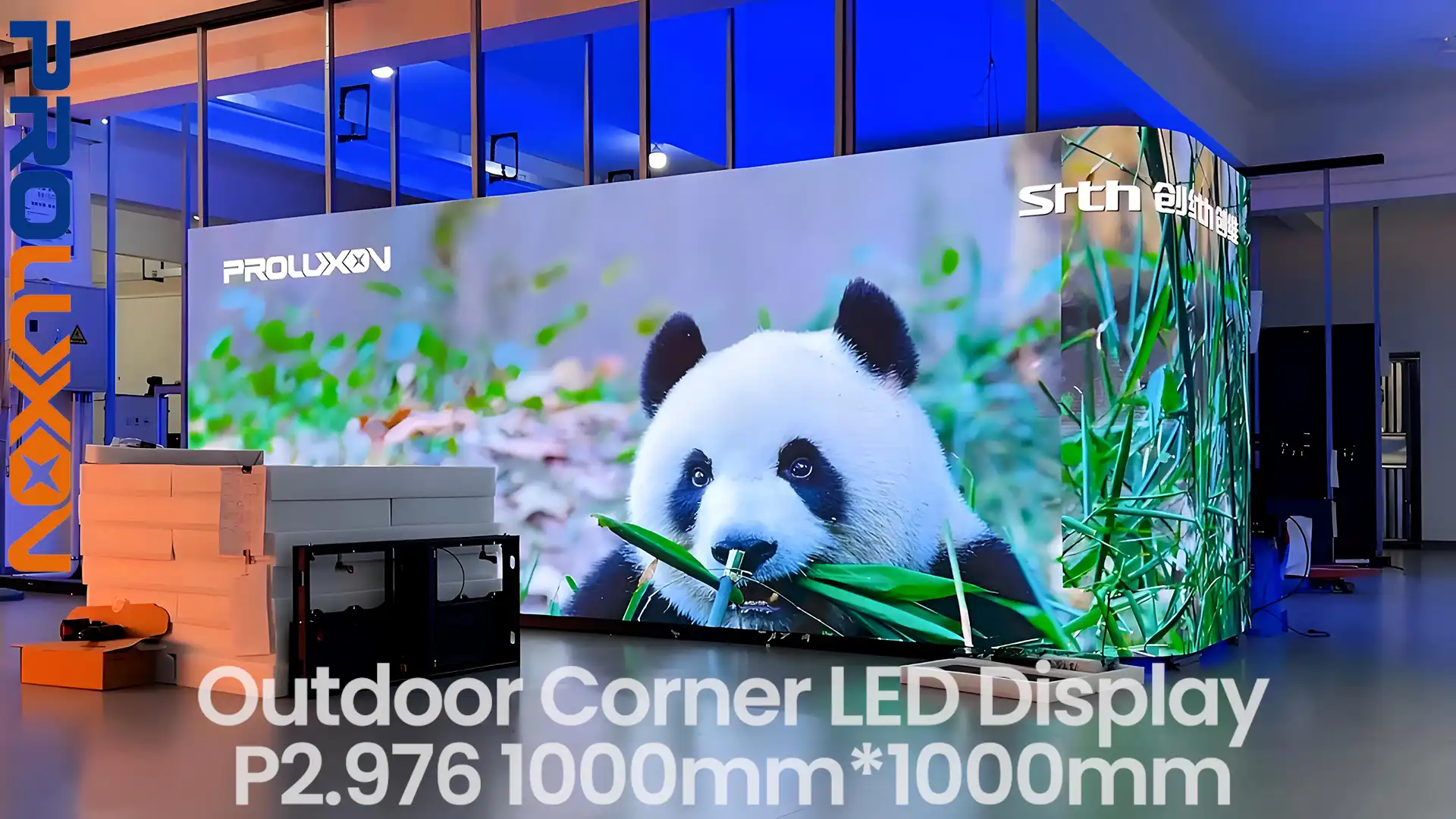

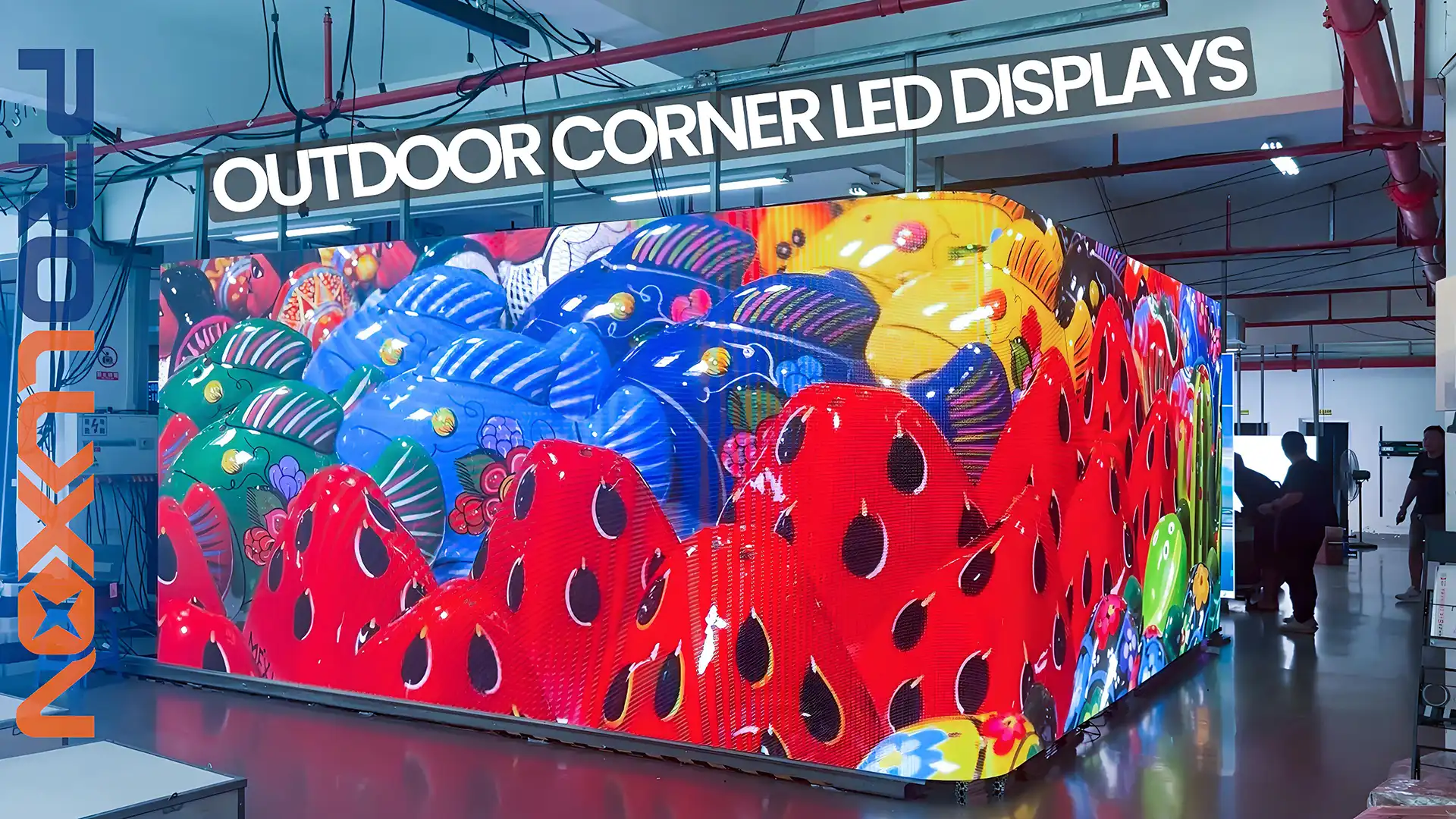

Corner Outdoor LED Screen: Corner LED displays are installed at the building corners, utilizing 10° 62.5 × 250 mm LED modules to form a 90° curved 562.5 × 1000 mm cabinet. This is seamlessly integrated with 1000 × 1000 mm flat LED cabinet to achieve a corner display capable of supporting immersive 3D visual effects；

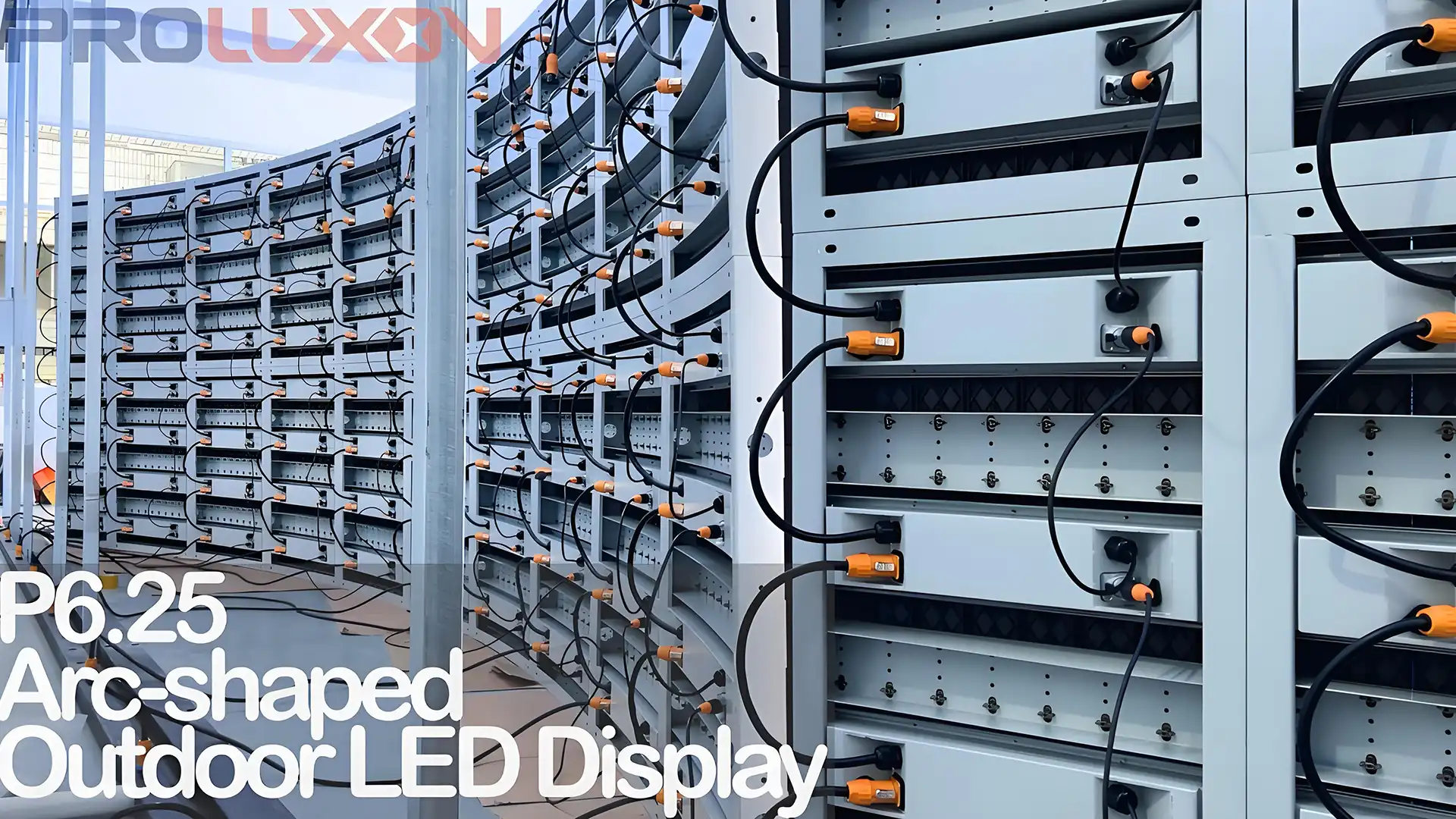

Curved Arc Outdoor LED Billboards: By combining standard-sized LED modules—6-degree (41.66×250 mm) and 9-degree (62.5×250 mm)—high-brightness, seamlessly connected, ultra-wide-viewing-angle curved LED displays can be constructed at various radii, enabling flexible design for dynamic architectural integration;

Round Outdoor LED Display: Utilizing standard-sized LED modules (6-degree 41.66 mm × 250 mm and 9-degree 62.5 mm × 250 mm) enclosed in a steel structure, circular LED displays can achieve a minimum diameter of 72 mm, ensuring structural durability and precise curvature alignment;

Corner, curved, and circular LED displays go beyond traditional rectangular screens, enhancing functionality and spatial design. In malls, circular LED screens in atriums display brand content and interactive ads as focal points. Corner LEDs guide foot traffic at junctions, delivering seamless promotions across zones. High-end stores use curved screens on windows or walls to align with architectural lines, creating fluid visuals and improving customer experience. At airports and stations, curved displays follow corridors, clearly showing transit updates and safety information. In science museums, circular screens simulate cosmic or microscopic environments, adding immersion to exhibits. Corner screens in office lobbies or hospital hallways provide wayfinding, simplifying navigation. Outdoors, curved LED screens integrate with building facades as landmarks, while corner installations enable continuous advertising.

Provide Product Requirements

Features of Curved Outdoor LED Billboards

01. Energy-efficient LED displays save up to 30% on electricity, with average power consumption of 100–200W per square meter, and support full front and rear maintenance for all outdoor applications;

02. Front and back are IP65 waterproof, enabling seamless splicing, a sleek design, perfect flatness, quick installation, high brightness, high refresh rate, and high gray scale;

03.83mm ultra-thin design and 24.6kg lightweight cabinet per unit, delivering a wide 160-degree viewing angle for optimal image quality from any position;

04. Supports P2.976, P3.91, P4.81, P6.25, P7.81, P10.42 models with cabinet size 562.5 mm × 1000 mm;

05. Its curved design provides a wider viewing angle, minimizes blind spots, and enhances visuals from any position, creating an immersive experience that draws viewers into the scene;

06. They typically have a modular design that allows flexible assembly based on actual needs, with customizable curvature, size, and resolution, making them suitable for diverse commercial applications—from small curved displays to kilometer-long outdoor skylights;

07. Widely used in commercial complexes, cultural and tourism venues, transportation hubs, flagship stores, and large event spaces to deliver striking visuals and immersive experiences;

Contact Sales Team for More Information

Applications of Outdoor Fixed LED Displays

Outdoor commercial LED displays come in various shapes—flat, corner, arc, round, and 3D—each designed for specific applications to maximize visibility and engagement. Common uses include:

01. Billboards – for highway and urban advertising;

02. Building facades – for large-scale ads or storefront messaging;

03. Public transport hubs – in airports, stations, and terminals for ads and information;

04. Intersection corners – to attract attention from multiple directions;

05. Street corners – to engage pedestrians and drivers with dynamic content;

06. Curved architecture – to complement buildings with rounded designs like arenas and malls;

07. Event stages – to create immersive backdrops at concerts and exhibitions;

08. 360-degree displays – for central locations like malls or lobbies, visible from all angles;

09. Retail kiosks – to stand out in busy shopping environments;

10. Interactive ads – for high-traffic areas such as Times Square or Piccadilly Circus;

11. Public art – for digital installations that draw attention and increase foot traffic;

Feedback Your Application Scenario

Curved Outdoor LED Displays Consultation:

01. Model selection:2.976 mm, 3.91 mm, 4.81 mm, 6.25 mm, 7.81 mm, 10.42 mm;

02. LED cabinet size selection: 562.5 mm × 1000 mm, 624.96 mm× 1000 mm;

03. Installation site design requirements: Arc, Corner, Round or Customized Design;

04. LED lamp raw material selection: Rayshine, Kinglight, Nationstar; (copper wire or gold wire)

05. Supply voltage selection: AC 220V or AC110~240V with CE&UL;

06. Driver IC options: ICND1065S, ICND2153S, ICND2065AP, ICND3065AP, MBI5264IC; True refresh rate higher than 3840Hz or 7680Hz;

07. High brightness 0ptions: 4500 to 5500 nits, 5500 to 6500 nits, above 10,000 nits;

08. Installation methods: Hanging, Stacking;

09. Usage requirements: Length and Height of LED display or Number of LED cabinets;

10. Applications: commercial complexes, cultural and tourism venues, transportation hubs, flagship stores, and large event spaces to deliver striking visuals and immersive experiences, sports stadiums and arenas, media advertising, retail environments, government buildings, museums and exhibitions, billboards, shopping malls;
